二合一防雷器 上海 浙江 江苏 视频电源防雷器
<br />
<p class="STYLE18"><img height="30" alt="产品介绍" src="http://www.utepo.com/images/产品介绍.jpg" width="100" /><a name="A1"></a></p>

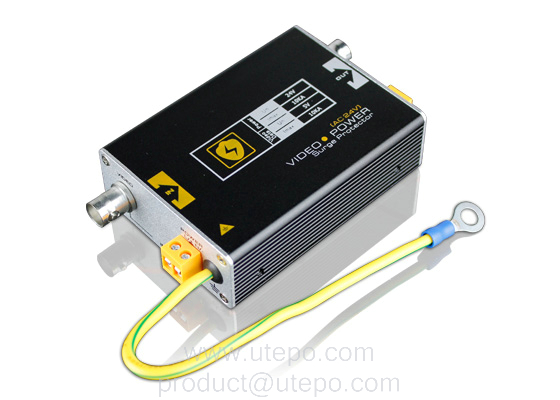

<p align="left"><span lang="EN-US" style="font-size: 10.5pt; color: black; font-family: 宋体; mso-fareast-theme-font: minor-fareast; mso-bidi-font-family: 'Times New Roman'; mso-bidi-theme-font: minor-bidi; mso-ansi-language: EN-US; mso-fareast-language: ZH-CN; mso-bidi-language: AR-SA">USP201PV24</span><span style="font-size: 10.5pt; color: black; font-family: 宋体; mso-fareast-theme-font: minor-fareast; mso-bidi-font-family: 'Times New Roman'; mso-bidi-theme-font: minor-bidi; mso-ansi-language: EN-US; mso-fareast-language: ZH-CN; mso-bidi-language: AR-SA">是一款参照<span lang="EN-US">GB/T18802.21-2004/IEC61643-21:2000</span>国家标准设计的视频、电源、数据一体浪涌保护设备。该设备额定工作电压<span lang="EN-US">24V</span>，最大持续运行电压<span lang="EN-US">36V</span>，电压保护水平小于<span lang="EN-US">200V</span>，具有多级保护、通流容量大、限制电压低、响应时间快、插入损耗小等优点，适用于监控系统视频信号过电压防护，使其免受感应过电压、操作过电压和静电放电等所造成的损坏。</span></p>
<p align="left"> </p>
<p class="STYLE18"><a href="http://www.utepo.com/product-details.asp?id=516#a2"><img height="30" alt="产品图片" src="http://www.utepo.com/images/产品图片.jpg" width="100" border="0" /></a><a id="A2" name="A2"></a></p>
<table width="500" border="0">
<tbody>
<tr>
<td rowspan="2"><span class="STYLE18"><img alt="" hspace="0" src="http://www.utepo.com/upload/products/20111223112816156.jpg" border="0" style="filter: ; width: 560px; height: 400px" /></span></td>
<td width="200"> </td>
</tr>
<tr>
<td> </td>
</tr>
<tr>
<td colspan="2">
<table width="100%" border="0">
<tbody>
<tr>
<td> </td>
<td> </td>
<td> </td>
</tr>
</tbody>
</table>
</td>
</tr>
</tbody>
</table>
<p><br />
</p>
<p class="STYLE18"><img height="30" src="http://www.utepo.com/images/通过认证.jpg" width="100" alt="" /></p>
<p class="STYLE18"><span lang="EN-US" xml:lang="EN-US"><strong><img alt="" hspace="0" src="http://www.utepo.com/upload/products/20111210100606275.jpg" border="0" style="filter: ; width: 76px; height: 57px" /></strong></span> <strong><img alt="" hspace="0" src="http://www.utepo.com/upload/products/20111210100613693.jpg" border="0" style="filter: ; width: 76px; height: 57px" /> </strong> <strong><img alt="" hspace="0" src="http://www.utepo.com/upload/products/20111210100618804.jpg" border="0" style="filter: ; width: 76px; height: 72px" /></strong></p>
<p class="STYLE18" align="right"><a href="http://www.utepo.com/product-details.asp?id=516#top"><img height="13" src="http://www.utepo.com/images/top.gif" width="36" border="0" alt="" /></a></p>
<p class="STYLE18"><a href="http://www.utepo.com/product-details.asp?id=516#a3"><img height="30" src="http://www.utepo.com/images/产品特点.jpg" width="100" border="0" alt="" /></a><a id="A3" name="A3"></a></p>
<p>● 参考标准：GB/T18802.21-2004/IEC61643-21:2000国家标准；</p>
<p>● 保护信号：CCTV复合视频信号，带宽大于10MHz，12-24V交直流电源；</p>
<p>● 功能特征：多功能多级过压保护，通流容量大，限制电压低，响应时间快，插入损耗小；</p>
<p>● 接地方式：延伸线直接接地；</p>
<p>● 外观设计：标识科学清晰，容易识别，全铝制外壳，体积小巧，安装更便捷。</p>
<p class="STYLE18" align="right"><a href="http://www.utepo.com/product-details.asp?id=516#top"><img height="13" src="http://www.utepo.com/images/top.gif" width="36" border="0" alt="" /></a></p>

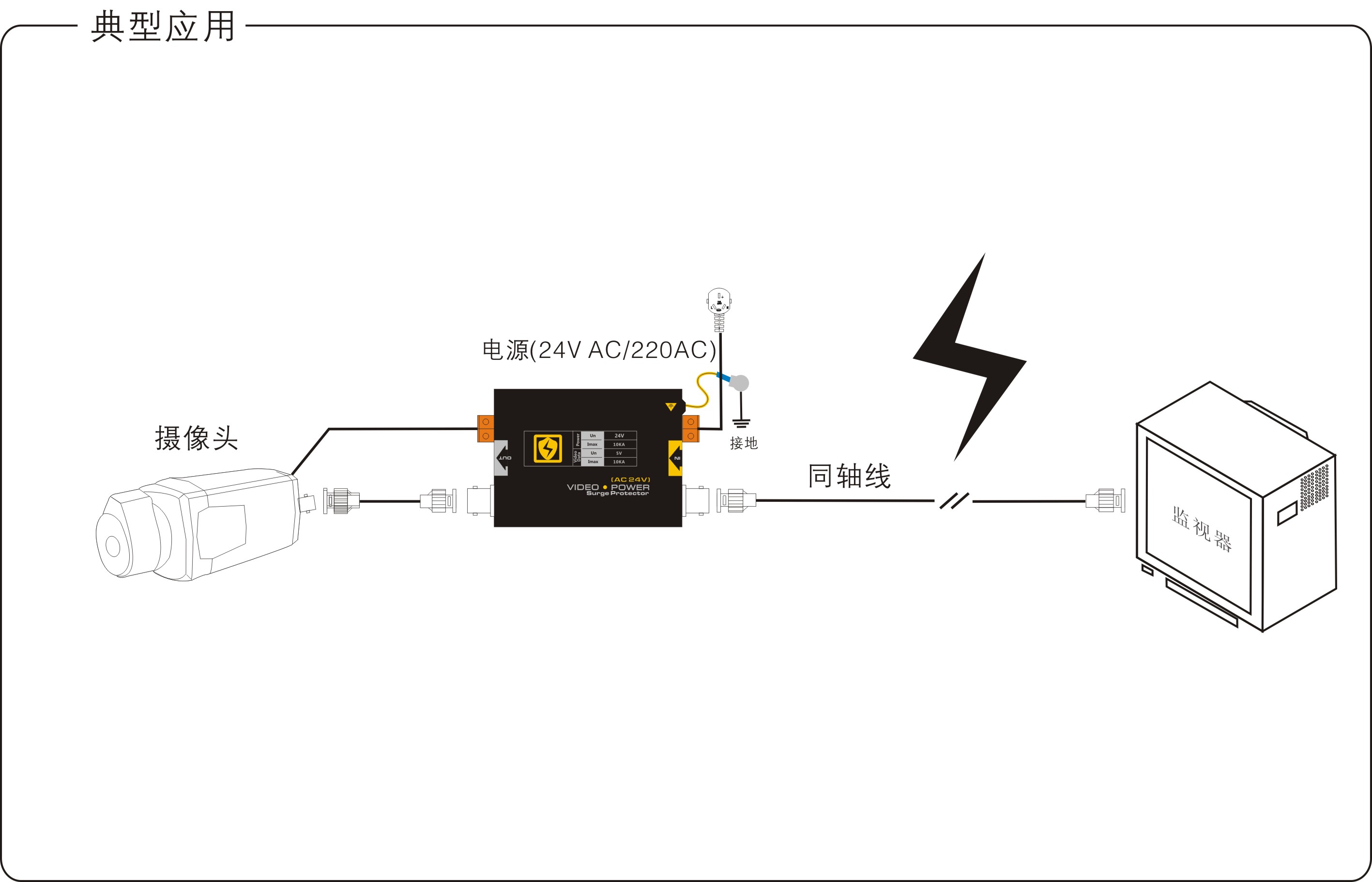

<p class="STYLE18"><a href="http://www.utepo.com/product-details.asp?id=516#a4"><img height="30" alt="连线示意图" src="http://www.utepo.com/images/组合应用.jpg" width="100" border="0" /></a><a id="A4" name="A4"></a></p>
<p class="STYLE18"><img alt="" hspace="0" src="http://www.utepo.com/upload/products/20111210100648328.jpg" border="0" style="filter: ; width: 500px; height: 321px" /></p>
<p class="STYLE18"><br />
<img height="30" alt="配对设备" src="http://www.utepo.com/images/pdsyt.jpg" width="100" border="0" /></p>
<p> </p>
<p><span class="STYLE18"><img height="30" alt="面板示意图" src="http://www.utepo.com/images/mbsyt.jpg" width="100" border="0" /></span><br />
</p>
<p class="STYLE18"><img alt="" hspace="0" src="http://www.utepo.com/upload/products/20111210100723469.jpg" border="0" style="filter: ; width: 500px; height: 222px" /></p>
<p class="STYLE18"><br />
<img height="30" alt="安装步骤" src="http://www.utepo.com/images/azbz.jpg" width="100" border="0" /></p>
<table width="500" border="0">
<tbody>
<tr>
<td>
<p>1. 将保护器接入系统前，先检查地网接地电阻，应符合规范要求。</p>
<p>2. 将保护器接入被保护设备前端，必须连接可靠。</p>
3. 将保护器的接地线尽可能短地连接到保护接地母线上。</td>
</tr>
<tr>
<td> </td>
</tr>
<tr>
<td> </td>
</tr>
</tbody>
</table>
<p class="STYLE18"> </p>
<p class="STYLE18" align="right"><a href="http://www.utepo.com/product-details.asp?id=516#top"><img height="13" src="http://www.utepo.com/images/top.gif" width="36" border="0" alt="" /></a></p>
<p class="STYLE18"><a href="http://www.utepo.com/product-details.asp?id=516#a5"><img height="30" src="http://www.utepo.com/images/性能参数.jpg" width="100" border="0" alt="" /></a><a id="A5" name="A5"></a></p>
<div align="center">
<table cellspacing="0" cellpadding="0" width="100%" border="1">
<tbody>
<tr>
<td width="46%" colspan="2">
<p align="center">项目</p>
</td>
<td width="53%">
<p align="center">描述</p>
</td>
</tr>
<tr>
<td width="46%" colspan="2">
<p align="center">产品型号</p>
</td>
<td width="53%">
<p align="left">USP201PV24</p>
</td>
</tr>
<tr>
<td width="17%" rowspan="11">
<p align="center">视频</p>
</td>
<td width="28%">
<p>额定工作电压</p>
</td>
<td width="53%">
<p>5V</p>
</td>
</tr>
<tr>
<td width="28%">
<p>最大持续运行电压</p>
</td>
<td width="53%">
<p>6V</p>
</td>
</tr>
<tr>
<td width="28%">
<p>标称放电电流（8/20µs）</p>
</td>
<td width="53%">
<p>5KA</p>
</td>
</tr>
<tr>
<td width="28%">
<p>最大放电电流（8/20µs）</p>
</td>
<td width="53%">
<p>10KA</p>
<p> </p>
</td>
</tr>
<tr>
<td width="28%">
<p>冲击限制电压（10/700/µs）</p>
</td>
<td width="53%">
<p><200V</p>
</td>
</tr>
<tr>
<td width="28%">
<p>绝缘电阻</p>
</td>
<td width="53%">
<p>≥0.4MΩ</p>
</td>
</tr>
<tr>
<td width="28%">
<p>插入损耗</p>
</td>
<td width="53%">
<p>≤0.5dB</p>
</td>
</tr>
<tr>
<td width="28%">
<p>驻波比</p>
</td>
<td width="53%">
<p>≤1.2</p>
</td>
</tr>
<tr>
<td width="28%">
<p>带宽</p>
</td>
<td width="53%">
<p>(0.3~10)M</p>
</td>
</tr>
<tr>
<td width="28%">
<p>传输速率</p>
</td>
<td width="53%">
<p>10 M</p>
</td>
</tr>
<tr>
<td width="28%">
<p>响应时间</p>
</td>
<td width="53%">
<p>≤1ns</p>
</td>
</tr>
<tr>
<td width="17%" rowspan="8">
<p align="center">电源</p>
</td>
<td width="28%">
<p>额定工作电压</p>
</td>
<td width="53%">
<p>24V</p>
</td>
</tr>
<tr>
<td width="28%">
<p>最大持续运行电压</p>
</td>
<td width="53%">
<p>36V</p>
</td>
</tr>
<tr>
<td width="28%">
<p>标称放电电流（8/20µs）</p>
</td>
<td width="53%">
<p>5KA/10KA</p>
</td>
</tr>
<tr>
<td width="28%">
<p>最大放电电流（8/20µs）</p>
</td>
<td width="53%">
<p>10KA/20KA</p>
</td>
</tr>
<tr>
<td width="28%">
<p>电压保护水平 (8/20/µs)</p>
</td>
<td width="53%">
<p>＜200V</p>
</td>
</tr>
<tr>
<td width="28%">
<p>额定负载电流</p>
</td>
<td width="53%">
<p>≤10A/15A</p>
</td>
</tr>
<tr>
<td width="28%">
<p>泄漏电流</p>
</td>
<td width="53%">
<p>≤5цA</p>
</td>
</tr>
<tr>
<td width="28%">
<p>响应时间</p>
</td>
<td width="53%">
<p>≤25ns</p>
</td>
</tr>
<tr>
<td width="17%" rowspan="3">
<p align="center">操作环境</p>
</td>
<td width="28%">
<p>工作温度</p>
</td>
<td width="53%">
<p>-20℃-50℃</p>
</td>
</tr>
<tr>
<td width="28%">
<p>存储温度</p>
</td>
<td width="53%">
<p>-40℃-70℃</p>
</td>
</tr>
<tr>
<td width="28%">
<p>湿度</p>
</td>
<td width="53%">
<p>0%-95%</p>
</td>
</tr>
<tr>
<td width="17%" rowspan="3">
<p align="center">机体属性</p>
</td>
<td width="28%">
<p>净重</p>
</td>
<td width="53%">
<p>172g</p>
</td>
</tr>
<tr>
<td width="28%">
<p>外形尺寸</p>
</td>
<td width="53%">
<p>112mm×63mm×38mm</p>
</td>
</tr>
<tr>
<td width="28%">
<p>外壳材料</p>
</td>
<td width="53%">
<p>金属铝质材料</p>
</td>
</tr>
<tr>
<td width="17%">
<p align="center">可靠性</p>
</td>
<td width="28%">
<p>平均故障间隔时间(MTBF)</p>
</td>
<td width="53%">
<p>>30000小时</p>
</td>
</tr>
</tbody>
</table>
</div>
<p><br />
</p>
<p class="STYLE18"><a href="http://www.utepo.com/product-details.asp?id=516#a6"><img height="30" alt="应用范围" src="http://www.utepo.com/images/应用范围.jpg" width="100" border="0" /></a><a id="A" name="A6"></a></p>
<p align="left">......</p>
<p> </p>
<p class="STYLE18" align="right"><a href="http://www.utepo.com/product-details.asp?id=516#top"><img height="13" src="http://www.utepo.com/images/top.gif" width="36" border="0" alt="" /></a></p>
<p class="STYLE18"><span lang="EN-US"><strong><a href="http://www.utepo.com/product-details.asp?id=516#"><img height="30" src="http://www.utepo.com/images/售后服务.jpg" width="100" border="0" alt="" /></a></strong></span></p>
<p class="STYLE18"><span lang="EN-US"><span style="font-size: 10.5pt; font-family: 宋体; mso-ascii-font-family: Calibri; mso-fareast-theme-font: minor-fareast; mso-hansi-font-family: Calibri; mso-bidi-font-family: 'Times New Roman'; mso-ascii-theme-font: minor-latin; mso-hansi-theme-font: minor-latin; mso-bidi-theme-font: minor-bidi; mso-ansi-language: EN-US; mso-fareast-language: ZH-CN; mso-bidi-language: AR-SA">工业三类：</span><span lang="EN-US" style="font-size: 10.5pt; font-family: 'Calibri','sans-serif'; mso-fareast-theme-font: minor-fareast; mso-bidi-font-family: 'Times New Roman'; mso-ascii-theme-font: minor-latin; mso-hansi-theme-font: minor-latin; mso-bidi-theme-font: minor-bidi; mso-ansi-language: EN-US; mso-fareast-language: ZH-CN; mso-bidi-language: AR-SA; mso-fareast-font-family: 宋体">15</span><span style="font-size: 10.5pt; font-family: 宋体; mso-ascii-font-family: Calibri; mso-fareast-theme-font: minor-fareast; mso-hansi-font-family: Calibri; mso-bidi-font-family: 'Times New Roman'; mso-ascii-theme-font: minor-latin; mso-hansi-theme-font: minor-latin; mso-bidi-theme-font: minor-bidi; mso-ansi-language: EN-US; mso-fareast-language: ZH-CN; mso-bidi-language: AR-SA">天包退、</span><span lang="EN-US" style="font-size: 10.5pt; font-family: 'Calibri','sans-serif'; mso-fareast-theme-font: minor-fareast; mso-bidi-font-family: 'Times New Roman'; mso-ascii-theme-font: minor-latin; mso-hansi-theme-font: minor-latin; mso-bidi-theme-font: minor-bidi; mso-ansi-language: EN-US; mso-fareast-language: ZH-CN; mso-bidi-language: AR-SA; mso-fareast-font-family: 宋体">30</span><span style="font-size: 10.5pt; font-family: 宋体; mso-ascii-font-family: Calibri; mso-fareast-theme-font: minor-fareast; mso-hansi-font-family: Calibri; mso-bidi-font-family: 'Times New Roman'; mso-ascii-theme-font: minor-latin; mso-hansi-theme-font: minor-latin; mso-bidi-theme-font: minor-bidi; mso-ansi-language: EN-US; mso-fareast-language: ZH-CN; mso-bidi-language: AR-SA">天包换、</span><span lang="EN-US" style="font-size: 10.5pt; font-family: 'Calibri','sans-serif'; mso-fareast-theme-font: minor-fareast; mso-bidi-font-family: 'Times New Roman'; mso-ascii-theme-font: minor-latin; mso-hansi-theme-font: minor-latin; mso-bidi-theme-font: minor-bidi; mso-ansi-language: EN-US; mso-fareast-language: ZH-CN; mso-bidi-language: AR-SA; mso-fareast-font-family: 宋体">3</span><span style="font-size: 10.5pt; font-family: 宋体; mso-ascii-font-family: Calibri; mso-fareast-theme-font: minor-fareast; mso-hansi-font-family: Calibri; mso-bidi-font-family: 'Times New Roman'; mso-ascii-theme-font: minor-latin; mso-hansi-theme-font: minor-latin; mso-bidi-theme-font: minor-bidi; mso-ansi-language: EN-US; mso-fareast-language: ZH-CN; mso-bidi-language: AR-SA">年免费保修、终身维护。</span></span></p>
<p class="STYLE18" align="right"><a href="http://www.utepo.com/product-details.asp?id=516#top"><img height="13" src="http://www.utepo.com/images/top.gif" width="36" border="0" alt="" /></a></p>
<p class="STYLE18"><a href="http://www.utepo.com/product-details.asp?id=516#a6"><img height="30" alt="包装清单" src="http://www.utepo.com/images/bzqd.jpg" width="100" border="0" /></a><a id="A6" name="A6"></a></p>
<p>●二合一防雷器 1个</p>
<p align="left">●安装挂耳 1对</p>
