多串口服务器,机架式串口服务器,多串口转换器

产品价格：面议

最小起订：0

供货总量：0

产品型号：C2000 N340

所在地：广东深圳

最后更新：6个月以前

浏览次数：1

产品介绍企业信息null

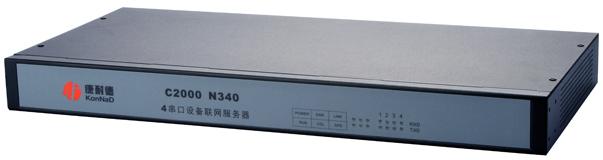

多串口服务器,机架式串口服务器,多串口转换器

<h2 style="margin-top: 18pt; margin-bottom: 18pt">概述<o:p></o:p></h2> C2000 N340是一种稳定可靠的高性能工业级四串口设备联网服务器，它提供RS232/485/422到TCP/IP网络和TCP/IP网络到RS232/485/422的数据透明传输，它可以使具有RS232/485/422串口的设备立即具备联入TCP/IP网络的功能。<o:p></o:p> C2000 N340向上提供10/100M以太网接口，向下提供4个标准RS232//485/422串行口，通讯参数可通过多种方式设置。C2000 N340可广泛应用于PLC控制与管理、门禁医疗、楼宇控制、工业自动化、测量仪表及环境动力监控系统、信息家电、LED信息显示设备和CNC管理等。<o:p></o:p> 特点： <o:p></o:p> →采用ARM9处理器+RTOS，具有更强大的实时处理能力；<o:p></o:p> →具有TCP Server、TCP Client、UDP、虚拟串口、点对点连接等5种操作模式 ；<o:p></o:p> →用户基于网络的软件。不需要做任何修改就可以与C2000 N340通讯；<o:p></o:p> →通过安装我们免费提供的虚拟串口软件，用户基于串口的软件不需要做任何修改就可以与C2000 N340通讯；<o:p></o:p> →对于需要开发软件的用户，我们免费提供通讯动态库、设置动态库或OCX控件；<o:p></o:p> →通过浏览器、设置软件或设置动态库进行参数修改设置；<o:p></o:p> →支持DNS域名解析功能；<o:p></o:p> →低功耗设计，无需散热装置；<o:p></o:p> →看门狗设计，稳定性高；<o:p></o:p> →电源具有良好的过流过压、防反接保护功能。<o:p></o:p> a)  本产品有以下三种工作模式： <o:p></o:p> 1．作为TCP服务器，转换器上电后在指定的TCP 端口等待数据服务器的连接请求，数据服务器在需要与转换器通讯的时候，向转换器的监听端口请求建立TCP 连接，连接建立后，数据服务器可以随时向转换器发送数据，转换器也可以随时将数据发送到数据服务器，在完成指定的通讯后，数据服务器可以主动要求断开连接，否则连接一直保持。<o:p></o:p> 2．作为TCP客户端，转换器上电时会主动向服务器请求连接，直到TCP连接建立为止，并且连接一旦建立将一直保持，连接建立后，数据服务器可以随时向转换器发送数据，转换器也可以随时将数据发送到数据服务器； <o:p></o:p> 3．UDP方式有两种：<o:p></o:p> 当C2000 工作在“UDP normal”模式时，C2000会回应所有的IP地址和端口发过来的数据，并将返回的数据发送到最后一次发给它查询请求的IP地址和端口。<o:p></o:p> 当C2000 工作在“UDP Appointed”模式时，它能接收所有的IP地址和端口发过来的数据，但只将返回的数据发送给指定的IP地址和端口。<o:p></o:p> b)  应用软件可使用三种方式与转换器通讯： <o:p></o:p> 1．通过本公司开发的虚拟串口管理程序，将网络数据重定向到虚拟串口，然后从虚拟串口读取数据。<o:p></o:p> 2．用本公司开发的控件EDSockServer.ocx(或动态库EDSockServer.dll)。<o:p></o:p> 3．使用Socket进行通讯。<o:p></o:p> <o:p></o:p> <o:p></o:p> <o:p></o:p> <o:p></o:p> <h2 style="margin-top: 18pt; margin-bottom: 18pt">1.2 技术参数<o:p></o:p></h2> <table align="center" style="padding-right: 5.4pt; padding-left: 5.4pt; padding-bottom: 0pt; padding-top: 0pt; border-collapse: collapse; mso-table-layout-alt: fixed"> <tbody> <tr> <td valign="middle" width="124" rowspan="3" style="border-right: rgb(0,0,0) 0.5pt solid; padding-right: 5.4pt; border-top: rgb(0,0,0) 0.5pt solid; padding-left: 5.4pt; background: rgb(198,217,241); padding-bottom: 0pt; border-left: rgb(0,0,0) 0.5pt solid; width: 93.65pt; padding-top: 0pt; border-bottom: rgb(0,0,0) 0.5pt solid; mso-border-left-alt: 0.5000pt solid rgb(0,0,0); mso-border-right-alt: 0.5000pt solid rgb(0,0,0); mso-border-top-alt: 0.5000pt solid rgb(0,0,0); mso-border-bottom-alt: 0.5000pt solid rgb(0,0,0)"> 系统<o:p></o:p> </td> <td valign="middle" width="120" style="border-right: rgb(0,0,0) 0.5pt solid; padding-right: 5.4pt; border-top: rgb(0,0,0) 0.5pt solid; padding-left: 5.4pt; padding-bottom: 0pt; border-left: medium none; width: 90pt; padding-top: 0pt; border-bottom: rgb(0,0,0) 0.5pt solid; mso-border-left-alt: none; mso-border-right-alt: 0.5000pt solid rgb(0,0,0); mso-border-top-alt: 0.5000pt solid rgb(0,0,0); mso-border-bottom-alt: 0.5000pt solid rgb(0,0,0)"> CPU<o:p></o:p> </td> <td valign="middle" width="390" style="border-right: rgb(0,0,0) 0.5pt solid; padding-right: 5.4pt; border-top: rgb(0,0,0) 0.5pt solid; padding-left: 5.4pt; padding-bottom: 0pt; border-left: medium none; width: 292.5pt; padding-top: 0pt; border-bottom: rgb(0,0,0) 0.5pt solid; mso-border-left-alt: none; mso-border-right-alt: 0.5000pt solid rgb(0,0,0); mso-border-top-alt: 0.5000pt solid rgb(0,0,0); mso-border-bottom-alt: 0.5000pt solid rgb(0,0,0)"> 32-bit ARM<o:p></o:p> </td> </tr> <tr> <td valign="middle" width="120" style="border-right: rgb(0,0,0) 0.5pt solid; padding-right: 5.4pt; border-top: medium none; padding-left: 5.4pt; padding-bottom: 0pt; border-left: medium none; width: 90pt; padding-top: 0pt; border-bottom: rgb(0,0,0) 0.5pt solid; mso-border-left-alt: none; mso-border-right-alt: 0.5000pt solid rgb(0,0,0); mso-border-top-alt: 0.5000pt solid rgb(0,0,0); mso-border-bottom-alt: 0.5000pt solid rgb(0,0,0)"> RAM<o:p></o:p> </td> <td valign="middle" width="390" style="border-right: rgb(0,0,0) 0.5pt solid; padding-right: 5.4pt; border-top: medium none; padding-left: 5.4pt; padding-bottom: 0pt; border-left: medium none; width: 292.5pt; padding-top: 0pt; border-bottom: rgb(0,0,0) 0.5pt solid; mso-border-left-alt: none; mso-border-right-alt: 0.5000pt solid rgb(0,0,0); mso-border-top-alt: 0.5000pt solid rgb(0,0,0); mso-border-bottom-alt: 0.5000pt solid rgb(0,0,0)"> 32MB<o:p></o:p> </td> </tr> <tr> <td valign="middle" width="120" style="border-right: rgb(0,0,0) 0.5pt solid; padding-right: 5.4pt; border-top: medium none; padding-left: 5.4pt; padding-bottom: 0pt; border-left: medium none; width: 90pt; padding-top: 0pt; border-bottom: rgb(0,0,0) 0.5pt solid; mso-border-left-alt: none; mso-border-right-alt: 0.5000pt solid rgb(0,0,0); mso-border-top-alt: 0.5000pt solid rgb(0,0,0); mso-border-bottom-alt: 0.5000pt solid rgb(0,0,0)"> Flash<o:p></o:p> </td> <td valign="middle" width="390" style="border-right: rgb(0,0,0) 0.5pt solid; padding-right: 5.4pt; border-top: medium none; padding-left: 5.4pt; padding-bottom: 0pt; border-left: medium none; width: 292.5pt; padding-top: 0pt; border-bottom: rgb(0,0,0) 0.5pt solid; mso-border-left-alt: none; mso-border-right-alt: 0.5000pt solid rgb(0,0,0); mso-border-top-alt: 0.5000pt solid rgb(0,0,0); mso-border-bottom-alt: 0.5000pt solid rgb(0,0,0)"> 32MB<o:p></o:p> </td> </tr> <tr> <td valign="middle" width="124" rowspan="2" style="border-right: rgb(0,0,0) 0.5pt solid; padding-right: 5.4pt; border-top: medium none; padding-left: 5.4pt; background: rgb(198,217,241); padding-bottom: 0pt; border-left: rgb(0,0,0) 0.5pt solid; width: 93.65pt; padding-top: 0pt; border-bottom: rgb(0,0,0) 0.5pt solid; mso-border-left-alt: 0.5000pt solid rgb(0,0,0); mso-border-right-alt: 0.5000pt solid rgb(0,0,0); mso-border-top-alt: none; mso-border-bottom-alt: 0.5000pt solid rgb(0,0,0)"> LAN<o:p></o:p> </td> <td valign="middle" width="120" style="border-right: rgb(0,0,0) 0.5pt solid; padding-right: 5.4pt; border-top: medium none; padding-left: 5.4pt; padding-bottom: 0pt; border-left: medium none; width: 90pt; padding-top: 0pt; border-bottom: rgb(0,0,0) 0.5pt solid; mso-border-left-alt: none; mso-border-right-alt: 0.5000pt solid rgb(0,0,0); mso-border-top-alt: 0.5000pt solid rgb(0,0,0); mso-border-bottom-alt: 0.5000pt solid rgb(0,0,0)"> 以太网<o:p></o:p> </td> <td valign="middle" width="390" style="border-right: rgb(0,0,0) 0.5pt solid; padding-right: 5.4pt; border-top: medium none; padding-left: 5.4pt; padding-bottom: 0pt; border-left: medium none; width: 292.5pt; padding-top: 0pt; border-bottom: rgb(0,0,0) 0.5pt solid; mso-border-left-alt: none; mso-border-right-alt: 0.5000pt solid rgb(0,0,0); mso-border-top-alt: 0.5000pt solid rgb(0,0,0); mso-border-bottom-alt: 0.5000pt solid rgb(0,0,0)"> 10/100Mpbs自适应，RJ45<o:p></o:p> </td> </tr> <tr> <td valign="middle" width="120" style="border-right: rgb(0,0,0) 0.5pt solid; padding-right: 5.4pt; border-top: medium none; padding-left: 5.4pt; padding-bottom: 0pt; border-left: medium none; width: 90pt; padding-top: 0pt; border-bottom: rgb(0,0,0) 0.5pt solid; mso-border-left-alt: none; mso-border-right-alt: 0.5000pt solid rgb(0,0,0); mso-border-top-alt: 0.5000pt solid rgb(0,0,0); mso-border-bottom-alt: 0.5000pt solid rgb(0,0,0)"> 保护<o:p></o:p> </td> <td valign="middle" width="390" style="border-right: rgb(0,0,0) 0.5pt solid; padding-right: 5.4pt; border-top: medium none; padding-left: 5.4pt; padding-bottom: 0pt; border-left: medium none; width: 292.5pt; padding-top: 0pt; border-bottom: rgb(0,0,0) 0.5pt solid; mso-border-left-alt: none; mso-border-right-alt: 0.5000pt solid rgb(0,0,0); mso-border-top-alt: 0.5000pt solid rgb(0,0,0); mso-border-bottom-alt: 0.5000pt solid rgb(0,0,0)"> 内置1.5KV电磁隔离保护<o:p></o:p> </td> </tr> <tr> <td valign="middle" width="124" rowspan="2" style="border-right: rgb(0,0,0) 0.5pt solid; padding-right: 5.4pt; border-top: medium none; padding-left: 5.4pt; background: rgb(198,217,241); padding-bottom: 0pt; border-left: rgb(0,0,0) 0.5pt solid; width: 93.65pt; padding-top: 0pt; border-bottom: rgb(0,0,0) 0.5pt solid; mso-border-left-alt: 0.5000pt solid rgb(0,0,0); mso-border-right-alt: 0.5000pt solid rgb(0,0,0); mso-border-top-alt: none; mso-border-bottom-alt: 0.5000pt solid rgb(0,0,0)"> 串口接口<o:p></o:p> </td> <td valign="middle" width="120" style="border-right: rgb(0,0,0) 0.5pt solid; padding-right: 5.4pt; border-top: medium none; padding-left: 5.4pt; padding-bottom: 0pt; border-left: medium none; width: 90pt; padding-top: 0pt; border-bottom: rgb(0,0,0) 0.5pt solid; mso-border-left-alt: none; mso-border-right-alt: 0.5000pt solid rgb(0,0,0); mso-border-top-alt: 0.5000pt solid rgb(0,0,0); mso-border-bottom-alt: 0.5000pt solid rgb(0,0,0)"> 串口数量<o:p></o:p> </td> <td valign="middle" width="390" style="border-right: rgb(0,0,0) 0.5pt solid; padding-right: 5.4pt; border-top: medium none; padding-left: 5.4pt; padding-bottom: 0pt; border-left: medium none; width: 292.5pt; padding-top: 0pt; border-bottom: rgb(0,0,0) 0.5pt solid; mso-border-left-alt: none; mso-border-right-alt: 0.5000pt solid rgb(0,0,0); mso-border-top-alt: 0.5000pt solid rgb(0,0,0); mso-border-bottom-alt: 0.5000pt solid rgb(0,0,0)"> 4个<o:p></o:p> </td> </tr> <tr> <td valign="middle" width="120" style="border-right: rgb(0,0,0) 0.5pt solid; padding-right: 5.4pt; border-top: medium none; padding-left: 5.4pt; padding-bottom: 0pt; border-left: medium none; width: 90pt; padding-top: 0pt; border-bottom: rgb(0,0,0) 0.5pt solid; mso-border-left-alt: none; mso-border-right-alt: 0.5000pt solid rgb(0,0,0); mso-border-top-alt: 0.5000pt solid rgb(0,0,0); mso-border-bottom-alt: 0.5000pt solid rgb(0,0,0)"> 串口协议<o:p></o:p> </td> <td valign="middle" width="390" style="border-right: rgb(0,0,0) 0.5pt solid; padding-right: 5.4pt; border-top: medium none; padding-left: 5.4pt; padding-bottom: 0pt; border-left: medium none; width: 292.5pt; padding-top: 0pt; border-bottom: rgb(0,0,0) 0.5pt solid; mso-border-left-alt: none; mso-border-right-alt: 0.5000pt solid rgb(0,0,0); mso-border-top-alt: 0.5000pt solid rgb(0,0,0); mso-border-bottom-alt: 0.5000pt solid rgb(0,0,0)"> 4个RS232/485/422<o:p></o:p> </td> </tr> <tr> <td valign="middle" width="124" rowspan="5" style="border-right: rgb(0,0,0) 0.5pt solid; padding-right: 5.4pt; border-top: medium none; padding-left: 5.4pt; background: rgb(198,217,241); padding-bottom: 0pt; border-left: rgb(0,0,0) 0.5pt solid; width: 93.65pt; padding-top: 0pt; border-bottom: rgb(0,0,0) 0.5pt solid; mso-border-left-alt: 0.5000pt solid rgb(0,0,0); mso-border-right-alt: 0.5000pt solid rgb(0,0,0); mso-border-top-alt: none; mso-border-bottom-alt: 0.5000pt solid rgb(0,0,0)"> 串口通讯参数<o:p></o:p> <o:p></o:p> </td> <td valign="middle" width="120" style="border-right: rgb(0,0,0) 0.5pt solid; padding-right: 5.4pt; border-top: medium none; padding-left: 5.4pt; padding-bottom: 0pt; border-left: medium none; width: 90pt; padding-top: 0pt; border-bottom: rgb(0,0,0) 0.5pt solid; mso-border-left-alt: none; mso-border-right-alt: 0.5000pt solid rgb(0,0,0); mso-border-top-alt: 0.5000pt solid rgb(0,0,0); mso-border-bottom-alt: 0.5000pt solid rgb(0,0,0)"> 校验<o:p></o:p> </td> <td valign="middle" width="390" style="border-right: rgb(0,0,0) 0.5pt solid; padding-right: 5.4pt; border-top: medium none; padding-left: 5.4pt; padding-bottom: 0pt; border-left: medium none; width: 292.5pt; padding-top: 0pt; border-bottom: rgb(0,0,0) 0.5pt solid; mso-border-left-alt: none; mso-border-right-alt: 0.5000pt solid rgb(0,0,0); mso-border-top-alt: 0.5000pt solid rgb(0,0,0); mso-border-bottom-alt: 0.5000pt solid rgb(0,0,0)"> None，Even，Odd，Mark，Space<o:p></o:p> </td> </tr> <tr> <td valign="middle" width="120" style="border-right: rgb(0,0,0) 0.5pt solid; padding-right: 5.4pt; border-top: medium none; padding-left: 5.4pt; padding-bottom: 0pt; border-left: medium none; width: 90pt; padding-top: 0pt; border-bottom: rgb(0,0,0) 0.5pt solid; mso-border-left-alt: none; mso-border-right-alt: 0.5000pt solid rgb(0,0,0); mso-border-top-alt: 0.5000pt solid rgb(0,0,0); mso-border-bottom-alt: 0.5000pt solid rgb(0,0,0)"> 数据位<o:p></o:p> </td> <td valign="middle" width="390" style="border-right: rgb(0,0,0) 0.5pt solid; padding-right: 5.4pt; border-top: medium none; padding-left: 5.4pt; padding-bottom: 0pt; border-left: medium none; width: 292.5pt; padding-top: 0pt; border-bottom: rgb(0,0,0) 0.5pt solid; mso-border-left-alt: none; mso-border-right-alt: 0.5000pt solid rgb(0,0,0); mso-border-top-alt: 0.5000pt solid rgb(0,0,0); mso-border-bottom-alt: 0.5000pt solid rgb(0,0,0)"> 6，7，8<o:p></o:p> </td> </tr> <tr> <td valign="middle" width="120" style="border-right: rgb(0,0,0) 0.5pt solid; padding-right: 5.4pt; border-top: medium none; padding-left: 5.4pt; padding-bottom: 0pt; border-left: medium none; width: 90pt; padding-top: 0pt; border-bottom: rgb(0,0,0) 0.5pt solid; mso-border-left-alt: none; mso-border-right-alt: 0.5000pt solid rgb(0,0,0); mso-border-top-alt: 0.5000pt solid rgb(0,0,0); mso-border-bottom-alt: 0.5000pt solid rgb(0,0,0)"> 停止位<o:p></o:p> </td> <td valign="middle" width="390" style="border-right: rgb(0,0,0) 0.5pt solid; padding-right: 5.4pt; border-top: medium none; padding-left: 5.4pt; padding-bottom: 0pt; border-left: medium none; width: 292.5pt; padding-top: 0pt; border-bottom: rgb(0,0,0) 0.5pt solid; mso-border-left-alt: none; mso-border-right-alt: 0.5000pt solid rgb(0,0,0); mso-border-top-alt: 0.5000pt solid rgb(0,0,0); mso-border-bottom-alt: 0.5000pt solid rgb(0,0,0)"> 1、2<o:p></o:p> </td> </tr> <tr> <td valign="middle" width="120" style="border-right: rgb(0,0,0) 0.5pt solid; padding-right: 5.4pt; border-top: medium none; padding-left: 5.4pt; padding-bottom: 0pt; border-left: medium none; width: 90pt; padding-top: 0pt; border-bottom: rgb(0,0,0) 0.5pt solid; mso-border-left-alt: none; mso-border-right-alt: 0.5000pt solid rgb(0,0,0); mso-border-top-alt: 0.5000pt solid rgb(0,0,0); mso-border-bottom-alt: 0.5000pt solid rgb(0,0,0)"> 流量控制<o:p></o:p> </td> <td valign="middle" width="390" style="border-right: rgb(0,0,0) 0.5pt solid; padding-right: 5.4pt; border-top: medium none; padding-left: 5.4pt; padding-bottom: 0pt; border-left: medium none; width: 292.5pt; padding-top: 0pt; border-bottom: rgb(0,0,0) 0.5pt solid; mso-border-left-alt: none; mso-border-right-alt: 0.5000pt solid rgb(0,0,0); mso-border-top-alt: 0.5000pt solid rgb(0,0,0); mso-border-bottom-alt: 0.5000pt solid rgb(0,0,0)"> RTS/CTS，XON/XOFF，None<o:p></o:p> </td> </tr> <tr> <td valign="middle" width="120" style="border-right: rgb(0,0,0) 0.5pt solid; padding-right: 5.4pt; border-top: medium none; padding-left: 5.4pt; padding-bottom: 0pt; border-left: medium none; width: 90pt; padding-top: 0pt; border-bottom: rgb(0,0,0) 0.5pt solid; mso-border-left-alt: none; mso-border-right-alt: 0.5000pt solid rgb(0,0,0); mso-border-top-alt: 0.5000pt solid rgb(0,0,0); mso-border-bottom-alt: 0.5000pt solid rgb(0,0,0)"> 速率<o:p></o:p> </td> <td valign="middle" width="390" style="border-right: rgb(0,0,0) 0.5pt solid; padding-right: 5.4pt; border-top: medium none; padding-left: 5.4pt; padding-bottom: 0pt; border-left: medium none; width: 292.5pt; padding-top: 0pt; border-bottom: rgb(0,0,0) 0.5pt solid; mso-border-left-alt: none; mso-border-right-alt: 0.5000pt solid rgb(0,0,0); mso-border-top-alt: 0.5000pt solid rgb(0,0,0); mso-border-bottom-alt: 0.5000pt solid rgb(0,0,0)"> 300bps至115200bps<o:p></o:p> </td> </tr> <tr> <td valign="middle" width="124" rowspan="5" style="border-right: rgb(0,0,0) 0.5pt solid; padding-right: 5.4pt; border-top: medium none; padding-left: 5.4pt; background: rgb(198,217,241); padding-bottom: 0pt; border-left: rgb(0,0,0) 0.5pt solid; width: 93.65pt; padding-top: 0pt; border-bottom: rgb(0,0,0) 0.5pt solid; mso-border-left-alt: 0.5000pt solid rgb(0,0,0); mso-border-right-alt: 0.5000pt solid rgb(0,0,0); mso-border-top-alt: none; mso-border-bottom-alt: 0.5000pt solid rgb(0,0,0)"> 软件特点<o:p></o:p> </td> <td valign="middle" width="120" style="border-right: rgb(0,0,0) 0.5pt solid; padding-right: 5.4pt; border-top: medium none; padding-left: 5.4pt; padding-bottom: 0pt; border-left: medium none; width: 90pt; padding-top: 0pt; border-bottom: rgb(0,0,0) 0.5pt solid; mso-border-left-alt: none; mso-border-right-alt: 0.5000pt solid rgb(0,0,0); mso-border-top-alt: 0.5000pt solid rgb(0,0,0); mso-border-bottom-alt: 0.5000pt solid rgb(0,0,0)"> 协议<o:p></o:p> </td> <td valign="middle" width="390" style="border-right: rgb(0,0,0) 0.5pt solid; padding-right: 5.4pt; border-top: medium none; padding-left: 5.4pt; padding-bottom: 0pt; border-left: medium none; width: 292.5pt; padding-top: 0pt; border-bottom: rgb(0,0,0) 0.5pt solid; mso-border-left-alt: none; mso-border-right-alt: 0.5000pt solid rgb(0,0,0); mso-border-top-alt: 0.5000pt solid rgb(0,0,0); mso-border-bottom-alt: 0.5000pt solid rgb(0,0,0)"> ARP，IP，ICMP，TCP，UDP，DHCP，HTTP，DNS<o:p></o:p> </td> </tr> <tr> <td valign="middle" width="120" style="border-right: rgb(0,0,0) 0.5pt solid; padding-right: 5.4pt; border-top: medium none; padding-left: 5.4pt; padding-bottom: 0pt; border-left: medium none; width: 90pt; padding-top: 0pt; border-bottom: rgb(0,0,0) 0.5pt solid; mso-border-left-alt: none; mso-border-right-alt: 0.5000pt solid rgb(0,0,0); mso-border-top-alt: 0.5000pt solid rgb(0,0,0); mso-border-bottom-alt: 0.5000pt solid rgb(0,0,0)"> 操作模式<o:p></o:p> </td> <td valign="middle" width="390" style="border-right: rgb(0,0,0) 0.5pt solid; padding-right: 5.4pt; border-top: medium none; padding-left: 5.4pt; padding-bottom: 0pt; border-left: medium none; width: 292.5pt; padding-top: 0pt; border-bottom: rgb(0,0,0) 0.5pt solid; mso-border-left-alt: none; mso-border-right-alt: 0.5000pt solid rgb(0,0,0); mso-border-top-alt: 0.5000pt solid rgb(0,0,0); mso-border-bottom-alt: 0.5000pt solid rgb(0,0,0)"> TCP Server，TCP Client，UDP，虚拟串口，点对点连接<o:p></o:p> </td> </tr> <tr> <td valign="middle" width="120" style="border-right: rgb(0,0,0) 0.5pt solid; padding-right: 5.4pt; border-top: medium none; padding-left: 5.4pt; padding-bottom: 0pt; border-left: medium none; width: 90pt; padding-top: 0pt; border-bottom: rgb(0,0,0) 0.5pt solid; mso-border-left-alt: none; mso-border-right-alt: 0.5000pt solid rgb(0,0,0); mso-border-top-alt: 0.5000pt solid rgb(0,0,0); mso-border-bottom-alt: 0.5000pt solid rgb(0,0,0)"> 设定<o:p></o:p> </td> <td valign="middle" width="390" style="border-right: rgb(0,0,0) 0.5pt solid; padding-right: 5.4pt; border-top: medium none; padding-left: 5.4pt; padding-bottom: 0pt; border-left: medium none; width: 292.5pt; padding-top: 0pt; border-bottom: rgb(0,0,0) 0.5pt solid; mso-border-left-alt: none; mso-border-right-alt: 0.5000pt solid rgb(0,0,0); mso-border-top-alt: 0.5000pt solid rgb(0,0,0); mso-border-bottom-alt: 0.5000pt solid rgb(0,0,0)"> C2000设置程序，Web浏览器，设置动态库、串口设置（可选）<o:p></o:p> </td> </tr> <tr> <td valign="middle" width="120" style="border-right: rgb(0,0,0) 0.5pt solid; padding-right: 5.4pt; border-top: medium none; padding-left: 5.4pt; padding-bottom: 0pt; border-left: medium none; width: 90pt; padding-top: 0pt; border-bottom: rgb(0,0,0) 0.5pt solid; mso-border-left-alt: none; mso-border-right-alt: 0.5000pt solid rgb(0,0,0); mso-border-top-alt: 0.5000pt solid rgb(0,0,0); mso-border-bottom-alt: 0.5000pt solid rgb(0,0,0)"> 提供软件<o:p></o:p> </td> <td valign="middle" width="390" style="border-right: rgb(0,0,0) 0.5pt solid; padding-right: 5.4pt; border-top: medium none; padding-left: 5.4pt; padding-bottom: 0pt; border-left: medium none; width: 292.5pt; padding-top: 0pt; border-bottom: rgb(0,0,0) 0.5pt solid; mso-border-left-alt: none; mso-border-right-alt: 0.5000pt solid rgb(0,0,0); mso-border-top-alt: 0.5000pt solid rgb(0,0,0); mso-border-bottom-alt: 0.5000pt solid rgb(0,0,0)"> 虚拟串口软件、C2000设置程序、串口调试工具、网络测试程序、EDSockServer.OCX和EDSockServer.DLL、设置动态库以及VB、VC、BC、Delphi的示例代码<o:p></o:p> </td> </tr> <tr> <td valign="middle" width="120" style="border-right: rgb(0,0,0) 0.5pt solid; padding-right: 5.4pt; border-top: medium none; padding-left: 5.4pt; padding-bottom: 0pt; border-left: medium none; width: 90pt; padding-top: 0pt; border-bottom: rgb(0,0,0) 0.5pt solid; mso-border-left-alt: none; mso-border-right-alt: 0.5000pt solid rgb(0,0,0); mso-border-top-alt: 0.5000pt solid rgb(0,0,0); mso-border-bottom-alt: 0.5000pt solid rgb(0,0,0)"> 驱动支持<o:p></o:p> </td> <td valign="middle" width="390" style="border-right: rgb(0,0,0) 0.5pt solid; padding-right: 5.4pt; border-top: medium none; padding-left: 5.4pt; padding-bottom: 0pt; border-left: medium none; width: 292.5pt; padding-top: 0pt; border-bottom: rgb(0,0,0) 0.5pt solid; mso-border-left-alt: none; mso-border-right-alt: 0.5000pt solid rgb(0,0,0); mso-border-top-alt: 0.5000pt solid rgb(0,0,0); mso-border-bottom-alt: 0.5000pt solid rgb(0,0,0)"> Windows 98/ME/2000/XP/2003/Vista/Windows 7 32位<o:p></o:p> </td> </tr> <tr> <td valign="middle" width="124" rowspan="2" style="border-right: rgb(0,0,0) 0.5pt solid; padding-right: 5.4pt; border-top: medium none; padding-left: 5.4pt; background: rgb(198,217,241); padding-bottom: 0pt; border-left: rgb(0,0,0) 0.5pt solid; width: 93.65pt; padding-top: 0pt; border-bottom: rgb(0,0,0) 0.5pt solid; mso-border-left-alt: 0.5000pt solid rgb(0,0,0); mso-border-right-alt: 0.5000pt solid rgb(0,0,0); mso-border-top-alt: none; mso-border-bottom-alt: 0.5000pt solid rgb(0,0,0)"> 电源需求<o:p></o:p> </td> <td valign="middle" width="120" style="border-right: rgb(0,0,0) 0.5pt solid; padding-right: 5.4pt; border-top: medium none; padding-left: 5.4pt; padding-bottom: 0pt; border-left: medium none; width: 90pt; padding-top: 0pt; border-bottom: rgb(0,0,0) 0.5pt solid; mso-border-left-alt: none; mso-border-right-alt: 0.5000pt solid rgb(0,0,0); mso-border-top-alt: 0.5000pt solid rgb(0,0,0); mso-border-bottom-alt: 0.5000pt solid rgb(0,0,0)"> 电源规格<o:p></o:p> </td> <td valign="middle" width="390" style="border-right: rgb(0,0,0) 0.5pt solid; padding-right: 5.4pt; border-top: medium none; padding-left: 5.4pt; padding-bottom: 0pt; border-left: medium none; width: 292.5pt; padding-top: 0pt; border-bottom: rgb(0,0,0) 0.5pt solid; mso-border-left-alt: none; mso-border-right-alt: 0.5000pt solid rgb(0,0,0); mso-border-top-alt: 0.5000pt solid rgb(0,0,0); mso-border-bottom-alt: 0.5000pt solid rgb(0,0,0)"> 220VAC,50~60HZ<o:p></o:p> </td> </tr> <tr> <td valign="middle" width="120" style="border-right: rgb(0,0,0) 0.5pt solid; padding-right: 5.4pt; border-top: medium none; padding-left: 5.4pt; padding-bottom: 0pt; border-left: medium none; width: 90pt; padding-top: 0pt; border-bottom: rgb(0,0,0) 0.5pt solid; mso-border-left-alt: none; mso-border-right-alt: 0.5000pt solid rgb(0,0,0); mso-border-top-alt: 0.5000pt solid rgb(0,0,0); mso-border-bottom-alt: 0.5000pt solid rgb(0,0,0)"> 最大功率<o:p></o:p> </td> <td valign="middle" width="390" style="border-right: rgb(0,0,0) 0.5pt solid; padding-right: 5.4pt; border-top: medium none; padding-left: 5.4pt; padding-bottom: 0pt; border-left: medium none; width: 292.5pt; padding-top: 0pt; border-bottom: rgb(0,0,0) 0.5pt solid; mso-border-left-alt: none; mso-border-right-alt: 0.5000pt solid rgb(0,0,0); mso-border-top-alt: 0.5000pt solid rgb(0,0,0); mso-border-bottom-alt: 0.5000pt solid rgb(0,0,0)"> 最大功率8W<o:p></o:p> </td> </tr> <tr> <td valign="middle" width="124" rowspan="2" style="border-right: rgb(0,0,0) 0.5pt solid; padding-right: 5.4pt; border-top: medium none; padding-left: 5.4pt; background: rgb(198,217,241); padding-bottom: 0pt; border-left: rgb(0,0,0) 0.5pt solid; width: 93.65pt; padding-top: 0pt; border-bottom: rgb(0,0,0) 0.5pt solid; mso-border-left-alt: 0.5000pt solid rgb(0,0,0); mso-border-right-alt: 0.5000pt solid rgb(0,0,0); mso-border-top-alt: none; mso-border-bottom-alt: 0.5000pt solid rgb(0,0,0)"> 工作环境<o:p></o:p> </td> <td valign="middle" width="120" style="border-right: rgb(0,0,0) 0.5pt solid; padding-right: 5.4pt; border-top: medium none; padding-left: 5.4pt; padding-bottom: 0pt; border-left: medium none; width: 90pt; padding-top: 0pt; border-bottom: rgb(0,0,0) 0.5pt solid; mso-border-left-alt: none; mso-border-right-alt: 0.5000pt solid rgb(0,0,0); mso-border-top-alt: 0.5000pt solid rgb(0,0,0); mso-border-bottom-alt: 0.5000pt solid rgb(0,0,0)"> 操作温度、湿度<o:p></o:p> </td> <td valign="middle" width="390" style="border-right: rgb(0,0,0) 0.5pt solid; padding-right: 5.4pt; border-top: medium none; padding-left: 5.4pt; padding-bottom: 0pt; border-left: medium none; width: 292.5pt; padding-top: 0pt; border-bottom: rgb(0,0,0) 0.5pt solid; mso-border-left-alt: none; mso-border-right-alt: 0.5000pt solid rgb(0,0,0); mso-border-top-alt: 0.5000pt solid rgb(0,0,0); mso-border-bottom-alt: 0.5000pt solid rgb(0,0,0)"> -25℃~85℃，5~95%RH不凝露<o:p></o:p> </td> </tr> <tr> <td valign="middle" width="120" style="border-right: rgb(0,0,0) 0.5pt solid; padding-right: 5.4pt; border-top: medium none; padding-left: 5.4pt; padding-bottom: 0pt; border-left: medium none; width: 90pt; padding-top: 0pt; border-bottom: rgb(0,0,0) 0.5pt solid; mso-border-left-alt: none; mso-border-right-alt: 0.5000pt solid rgb(0,0,0); mso-border-top-alt: 0.5000pt solid rgb(0,0,0); mso-border-bottom-alt: 0.5000pt solid rgb(0,0,0)"> 存储温度、湿度<o:p></o:p> </td> <td valign="middle" width="390" style="border-right: rgb(0,0,0) 0.5pt solid; padding-right: 5.4pt; border-top: medium none; padding-left: 5.4pt; padding-bottom: 0pt; border-left: medium none; width: 292.5pt; padding-top: 0pt; border-bottom: rgb(0,0,0) 0.5pt solid; mso-border-left-alt: none; mso-border-right-alt: 0.5000pt solid rgb(0,0,0); mso-border-top-alt: 0.5000pt solid rgb(0,0,0); mso-border-bottom-alt: 0.5000pt solid rgb(0,0,0)"> -60℃~125℃，5~95%RH不凝露<o:p></o:p> </td> </tr> <tr> <td valign="middle" width="124" style="border-right: rgb(0,0,0) 0.5pt solid; padding-right: 5.4pt; border-top: medium none; padding-left: 5.4pt; background: rgb(198,217,241); padding-bottom: 0pt; border-left: rgb(0,0,0) 0.5pt solid; width: 93.65pt; padding-top: 0pt; border-bottom: rgb(0,0,0) 0.5pt solid; mso-border-left-alt: 0.5000pt solid rgb(0,0,0); mso-border-right-alt: 0.5000pt solid rgb(0,0,0); mso-border-top-alt: 0.5000pt solid rgb(0,0,0); mso-border-bottom-alt: 0.5000pt solid rgb(0,0,0)"> 外观<o:p></o:p> </td> <td valign="middle" width="120" style="border-right: rgb(0,0,0) 0.5pt solid; padding-right: 5.4pt; border-top: medium none; padding-left: 5.4pt; padding-bottom: 0pt; border-left: medium none; width: 90pt; padding-top: 0pt; border-bottom: rgb(0,0,0) 0.5pt solid; mso-border-left-alt: none; mso-border-right-alt: 0.5000pt solid rgb(0,0,0); mso-border-top-alt: 0.5000pt solid rgb(0,0,0); mso-border-bottom-alt: 0.5000pt solid rgb(0,0,0)"> 尺寸<o:p></o:p> </td> <td valign="middle" width="390" style="border-right: rgb(0,0,0) 0.5pt solid; padding-right: 5.4pt; border-top: medium none; padding-left: 5.4pt; padding-bottom: 0pt; border-left: medium none; width: 292.5pt; padding-top: 0pt; border-bottom: rgb(0,0,0) 0.5pt solid; mso-border-left-alt: none; mso-border-right-alt: 0.5000pt solid rgb(0,0,0); mso-border-top-alt: 0.5000pt solid rgb(0,0,0); mso-border-bottom-alt: 0.5000pt solid rgb(0,0,0)"> 44×20.5×4cm<o:p></o:p> </td> </tr> </tbody> </table>  <img height="159" src="file:///C:/DOCUME~1/ADMINI~1/LOCALS~1/Temp/ksohtml/wps_clip_image-19102.png" width="599" alt="" />   POWER：电源指示灯。 <o:p></o:p> ERR：系统运行错误时灯亮。<o:p></o:p> LINK：网络连接灯，当转换器与网络连接上后灯亮。<o:p></o:p> RUN：系统正常运行为闪烁。<o:p></o:p> COL/NET：设备从网络上收到数据时灯闪烁，没有收到数据为长亮，断网为灯灭。<o:p></o:p> SPD：网络速度指示灯，当转换器为100M时灯亮。  <img height="80" src="file:///C:/DOCUME~1/ADMINI~1/LOCALS~1/Temp/ksohtml/wps_clip_image-19141.png" width="554" alt="" />   通讯串口：COM1~COM4（4个），从左到右依次分配。<o:p></o:p> 每一个COM都有一个RS-485/422和一个RS-232通讯接口，在同一个COM上的两种通讯接口是不能同时工作的，只能选择其一。<o:p></o:p> <o:p></o:p> <o:p></o:p> RJ45→RS232接口：（使用RJ45转DB9线既可）<o:p></o:p> <table align="center" style="padding-right: 5.4pt; padding-left: 5.4pt; padding-bottom: 0pt; padding-top: 0pt; border-collapse: collapse; mso-table-layout-alt: fixed"> <tbody> <tr> <td valign="middle" width="130" style="border-right: rgb(0,0,0) 0.5pt solid; padding-right: 5.4pt; border-top: rgb(0,0,0) 0.5pt solid; padding-left: 5.4pt; background: rgb(198,217,241); padding-bottom: 0pt; border-left: rgb(0,0,0) 0.5pt solid; width: 98pt; padding-top: 0pt; border-bottom: rgb(0,0,0) 0.5pt solid; mso-border-left-alt: 0.5000pt solid rgb(0,0,0); mso-border-right-alt: 0.5000pt solid rgb(0,0,0); mso-border-top-alt: 0.5000pt solid rgb(0,0,0); mso-border-bottom-alt: 0.5000pt solid rgb(0,0,0)"> RJ45引脚<o:p></o:p> </td> <td valign="middle" width="61" style="border-right: rgb(0,0,0) 0.5pt solid; padding-right: 5.4pt; border-top: rgb(0,0,0) 0.5pt solid; padding-left: 5.4pt; background: rgb(198,217,241); padding-bottom: 0pt; border-left: medium none; width: 45.75pt; padding-top: 0pt; border-bottom: rgb(0,0,0) 0.5pt solid; mso-border-left-alt: none; mso-border-right-alt: 0.5000pt solid rgb(0,0,0); mso-border-top-alt: 0.5000pt solid rgb(0,0,0); mso-border-bottom-alt: 0.5000pt solid rgb(0,0,0)"> 1<o:p></o:p> </td> <td valign="middle" width="61" style="border-right: rgb(0,0,0) 0.5pt solid; padding-right: 5.4pt; border-top: rgb(0,0,0) 0.5pt solid; padding-left: 5.4pt; background: rgb(198,217,241); padding-bottom: 0pt; border-left: medium none; width: 45.8pt; padding-top: 0pt; border-bottom: rgb(0,0,0) 0.5pt solid; mso-border-left-alt: none; mso-border-right-alt: 0.5000pt solid rgb(0,0,0); mso-border-top-alt: 0.5000pt solid rgb(0,0,0); mso-border-bottom-alt: 0.5000pt solid rgb(0,0,0)"> 2<o:p></o:p> </td> <td valign="middle" width="61" style="border-right: rgb(0,0,0) 0.5pt solid; padding-right: 5.4pt; border-top: rgb(0,0,0) 0.5pt solid; padding-left: 5.4pt; background: rgb(198,217,241); padding-bottom: 0pt; border-left: medium none; width: 45.8pt; padding-top: 0pt; border-bottom: rgb(0,0,0) 0.5pt solid; mso-border-left-alt: none; mso-border-right-alt: 0.5000pt solid rgb(0,0,0); mso-border-top-alt: 0.5000pt solid rgb(0,0,0); mso-border-bottom-alt: 0.5000pt solid rgb(0,0,0)"> 3<o:p></o:p> </td> <td valign="middle" width="61" style="border-right: rgb(0,0,0) 0.5pt solid; padding-right: 5.4pt; border-top: rgb(0,0,0) 0.5pt solid; padding-left: 5.4pt; background: rgb(198,217,241); padding-bottom: 0pt; border-left: medium none; width: 45.8pt; padding-top: 0pt; border-bottom: rgb(0,0,0) 0.5pt solid; mso-border-left-alt: none; mso-border-right-alt: 0.5000pt solid rgb(0,0,0); mso-border-top-alt: 0.5000pt solid rgb(0,0,0); mso-border-bottom-alt: 0.5000pt solid rgb(0,0,0)"> 4<o:p></o:p> </td> <td valign="middle" width="61" style="border-right: rgb(0,0,0) 0.5pt solid; padding-right: 5.4pt; border-top: rgb(0,0,0) 0.5pt solid; padding-left: 5.4pt; background: rgb(198,217,241); padding-bottom: 0pt; border-left: medium none; width: 45.8pt; padding-top: 0pt; border-bottom: rgb(0,0,0) 0.5pt solid; mso-border-left-alt: none; mso-border-right-alt: 0.5000pt solid rgb(0,0,0); mso-border-top-alt: 0.5000pt solid rgb(0,0,0); mso-border-bottom-alt: 0.5000pt solid rgb(0,0,0)"> 5<o:p></o:p> </td> <td valign="middle" width="61" style="border-right: rgb(0,0,0) 0.5pt solid; padding-right: 5.4pt; border-top: rgb(0,0,0) 0.5pt solid; padding-left: 5.4pt; background: rgb(198,217,241); padding-bottom: 0pt; border-left: medium none; width: 45.8pt; padding-top: 0pt; border-bottom: rgb(0,0,0) 0.5pt solid; mso-border-left-alt: none; mso-border-right-alt: 0.5000pt solid rgb(0,0,0); mso-border-top-alt: 0.5000pt solid rgb(0,0,0); mso-border-bottom-alt: 0.5000pt solid rgb(0,0,0)"> 6<o:p></o:p> </td> <td valign="middle" width="61" style="border-right: rgb(0,0,0) 0.5pt solid; padding-right: 5.4pt; border-top: rgb(0,0,0) 0.5pt solid; padding-left: 5.4pt; background: rgb(198,217,241); padding-bottom: 0pt; border-left: medium none; width: 45.8pt; padding-top: 0pt; border-bottom: rgb(0,0,0) 0.5pt solid; mso-border-left-alt: none; mso-border-right-alt: 0.5000pt solid rgb(0,0,0); mso-border-top-alt: 0.5000pt solid rgb(0,0,0); mso-border-bottom-alt: 0.5000pt solid rgb(0,0,0)"> 7<o:p></o:p> </td> <td valign="middle" width="61" style="border-right: rgb(0,0,0) 0.5pt solid; padding-right: 5.4pt; border-top: rgb(0,0,0) 0.5pt solid; padding-left: 5.4pt; background: rgb(198,217,241); padding-bottom: 0pt; border-left: medium none; width: 45.8pt; padding-top: 0pt; border-bottom: rgb(0,0,0) 0.5pt solid; mso-border-left-alt: none; mso-border-right-alt: 0.5000pt solid rgb(0,0,0); mso-border-top-alt: 0.5000pt solid rgb(0,0,0); mso-border-bottom-alt: 0.5000pt solid rgb(0,0,0)"> 8<o:p></o:p> </td> </tr> <tr> <td valign="middle" width="130" style="border-right: rgb(0,0,0) 0.5pt solid; padding-right: 5.4pt; border-top: medium none; padding-left: 5.4pt; background: rgb(198,217,241); padding-bottom: 0pt; border-left: rgb(0,0,0) 0.5pt solid; width: 98pt; padding-top: 0pt; border-bottom: rgb(0,0,0) 0.5pt solid; mso-border-left-alt: 0.5000pt solid rgb(0,0,0); mso-border-right-alt: 0.5000pt solid rgb(0,0,0); mso-border-top-alt: 0.5000pt solid rgb(0,0,0); mso-border-bottom-alt: 0.5000pt solid rgb(0,0,0)"> 232 引脚<o:p></o:p> </td> <td valign="middle" width="61" style="border-right: rgb(0,0,0) 0.5pt solid; padding-right: 5.4pt; border-top: medium none; padding-left: 5.4pt; padding-bottom: 0pt; border-left: medium none; width: 45.75pt; padding-top: 0pt; border-bottom: rgb(0,0,0) 0.5pt solid; mso-border-left-alt: none; mso-border-right-alt: 0.5000pt solid rgb(0,0,0); mso-border-top-alt: 0.5000pt solid rgb(0,0,0); mso-border-bottom-alt: 0.5000pt solid rgb(0,0,0)"> DSR<o:p></o:p> </td> <td valign="middle" width="61" style="border-right: rgb(0,0,0) 0.5pt solid; padding-right: 5.4pt; border-top: medium none; padding-left: 5.4pt; padding-bottom: 0pt; border-left: medium none; width: 45.8pt; padding-top: 0pt; border-bottom: rgb(0,0,0) 0.5pt solid; mso-border-left-alt: none; mso-border-right-alt: 0.5000pt solid rgb(0,0,0); mso-border-top-alt: 0.5000pt solid rgb(0,0,0); mso-border-bottom-alt: 0.5000pt solid rgb(0,0,0)"> RTS<o:p></o:p> </td> <td valign="middle" width="61" style="border-right: rgb(0,0,0) 0.5pt solid; padding-right: 5.4pt; border-top: medium none; padding-left: 5.4pt; padding-bottom: 0pt; border-left: medium none; width: 45.8pt; padding-top: 0pt; border-bottom: rgb(0,0,0) 0.5pt solid; mso-border-left-alt: none; mso-border-right-alt: 0.5000pt solid rgb(0,0,0); mso-border-top-alt: 0.5000pt solid rgb(0,0,0); mso-border-bottom-alt: 0.5000pt solid rgb(0,0,0)"> GND<o:p></o:p> </td> <td valign="middle" width="61" style="border-right: rgb(0,0,0) 0.5pt solid; padding-right: 5.4pt; border-top: medium none; padding-left: 5.4pt; padding-bottom: 0pt; border-left: medium none; width: 45.8pt; padding-top: 0pt; border-bottom: rgb(0,0,0) 0.5pt solid; mso-border-left-alt: none; mso-border-right-alt: 0.5000pt solid rgb(0,0,0); mso-border-top-alt: 0.5000pt solid rgb(0,0,0); mso-border-bottom-alt: 0.5000pt solid rgb(0,0,0)"> TXD<o:p></o:p> </td> <td valign="middle" width="61" style="border-right: rgb(0,0,0) 0.5pt solid; padding-right: 5.4pt; border-top: medium none; padding-left: 5.4pt; padding-bottom: 0pt; border-left: medium none; width: 45.8pt; padding-top: 0pt; border-bottom: rgb(0,0,0) 0.5pt solid; mso-border-left-alt: none; mso-border-right-alt: 0.5000pt solid rgb(0,0,0); mso-border-top-alt: 0.5000pt solid rgb(0,0,0); mso-border-bottom-alt: 0.5000pt solid rgb(0,0,0)"> RXD<o:p></o:p> </td> <td valign="middle" width="61" style="border-right: rgb(0,0,0) 0.5pt solid; padding-right: 5.4pt; border-top: medium none; padding-left: 5.4pt; padding-bottom: 0pt; border-left: medium none; width: 45.8pt; padding-top: 0pt; border-bottom: rgb(0,0,0) 0.5pt solid; mso-border-left-alt: none; mso-border-right-alt: 0.5000pt solid rgb(0,0,0); mso-border-top-alt: 0.5000pt solid rgb(0,0,0); mso-border-bottom-alt: 0.5000pt solid rgb(0,0,0)"> 空<o:p></o:p> </td> <td valign="middle" width="61" style="border-right: rgb(0,0,0) 0.5pt solid; padding-right: 5.4pt; border-top: medium none; padding-left: 5.4pt; padding-bottom: 0pt; border-left: medium none; width: 45.8pt; padding-top: 0pt; border-bottom: rgb(0,0,0) 0.5pt solid; mso-border-left-alt: none; mso-border-right-alt: 0.5000pt solid rgb(0,0,0); mso-border-top-alt: 0.5000pt solid rgb(0,0,0); mso-border-bottom-alt: 0.5000pt solid rgb(0,0,0)"> CTS<o:p></o:p> </td> <td valign="middle" width="61" style="border-right: rgb(0,0,0) 0.5pt solid; padding-right: 5.4pt; border-top: medium none; padding-left: 5.4pt; padding-bottom: 0pt; border-left: medium none; width: 45.8pt; padding-top: 0pt; border-bottom: rgb(0,0,0) 0.5pt solid; mso-border-left-alt: none; mso-border-right-alt: 0.5000pt solid rgb(0,0,0); mso-border-top-alt: 0.5000pt solid rgb(0,0,0); mso-border-bottom-alt: 0.5000pt solid rgb(0,0,0)"> DTR<o:p></o:p> </td> </tr> </tbody> </table> <o:p></o:p> RJ45→RS485/422接口：（使用水晶头根据下面接线方式制作）<o:p></o:p> <table style="padding-right: 5.4pt; padding-left: 5.4pt; padding-bottom: 0pt; padding-top: 0pt; border-collapse: collapse; mso-table-layout-alt: fixed"> <tbody> <tr style="height: 15.6pt"> <td valign="middle" width="98" style="border-right: rgb(0,0,0) 0.5pt solid; padding-right: 5.4pt; border-top: rgb(0,0,0) 0.5pt solid; padding-left: 5.4pt; background: rgb(198,217,241); padding-bottom: 0pt; border-left: rgb(0,0,0) 0.5pt solid; width: 73.75pt; padding-top: 0pt; border-bottom: rgb(0,0,0) 0.5pt solid; mso-border-left-alt: 0.5000pt solid rgb(0,0,0); mso-border-right-alt: 0.5000pt solid rgb(0,0,0); mso-border-top-alt: 0.5000pt solid rgb(0,0,0); mso-border-bottom-alt: 0.5000pt solid rgb(0,0,0)"> RJ45引脚<o:p></o:p> </td> <td valign="middle" width="64" style="border-right: rgb(0,0,0) 0.5pt solid; padding-right: 5.4pt; border-top: rgb(0,0,0) 0.5pt solid; padding-left: 5.4pt; background: rgb(198,217,241); padding-bottom: 0pt; border-left: medium none; width: 48.2pt; padding-top: 0pt; border-bottom: rgb(0,0,0) 0.5pt solid; mso-border-left-alt: none; mso-border-right-alt: 0.5000pt solid rgb(0,0,0); mso-border-top-alt: 0.5000pt solid rgb(0,0,0); mso-border-bottom-alt: 0.5000pt solid rgb(0,0,0)"> 1<o:p></o:p> </td> <td valign="middle" width="70" style="border-right: rgb(0,0,0) 0.5pt solid; padding-right: 5.4pt; border-top: rgb(0,0,0) 0.5pt solid; padding-left: 5.4pt; background: rgb(198,217,241); padding-bottom: 0pt; border-left: medium none; width: 53pt; padding-top: 0pt; border-bottom: rgb(0,0,0) 0.5pt solid; mso-border-left-alt: none; mso-border-right-alt: 0.5000pt solid rgb(0,0,0); mso-border-top-alt: 0.5000pt solid rgb(0,0,0); mso-border-bottom-alt: 0.5000pt solid rgb(0,0,0)"> 2<o:p></o:p> </td> <td valign="middle" width="64" style="border-right: rgb(0,0,0) 0.5pt solid; padding-right: 5.4pt; border-top: rgb(0,0,0) 0.5pt solid; padding-left: 5.4pt; background: rgb(198,217,241); padding-bottom: 0pt; border-left: medium none; width: 48.2pt; padding-top: 0pt; border-bottom: rgb(0,0,0) 0.5pt solid; mso-border-left-alt: none; mso-border-right-alt: 0.5000pt solid rgb(0,0,0); mso-border-top-alt: 0.5000pt solid rgb(0,0,0); mso-border-bottom-alt: 0.5000pt solid rgb(0,0,0)"> 3<o:p></o:p> </td> <td valign="middle" width="64" style="border-right: rgb(0,0,0) 0.5pt solid; padding-right: 5.4pt; border-top: rgb(0,0,0) 0.5pt solid; padding-left: 5.4pt; background: rgb(198,217,241); padding-bottom: 0pt; border-left: medium none; width: 48.2pt; padding-top: 0pt; border-bottom: rgb(0,0,0) 0.5pt solid; mso-border-left-alt: none; mso-border-right-alt: 0.5000pt solid rgb(0,0,0); mso-border-top-alt: 0.5000pt solid rgb(0,0,0); mso-border-bottom-alt: 0.5000pt solid rgb(0,0,0)"> 4<o:p></o:p> </td> <td valign="middle" width="64" style="border-right: rgb(0,0,0) 0.5pt solid; padding-right: 5.4pt; border-top: rgb(0,0,0) 0.5pt solid; padding-left: 5.4pt; background: rgb(198,217,241); padding-bottom: 0pt; border-left: medium none; width: 48.25pt; padding-top: 0pt; border-bottom: rgb(0,0,0) 0.5pt solid; mso-border-left-alt: none; mso-border-right-alt: 0.5000pt solid rgb(0,0,0); mso-border-top-alt: 0.5000pt solid rgb(0,0,0); mso-border-bottom-alt: 0.5000pt solid rgb(0,0,0)"> 5<o:p></o:p> </td> <td valign="middle" width="64" style="border-right: rgb(0,0,0) 0.5pt solid; padding-right: 5.4pt; border-top: rgb(0,0,0) 0.5pt solid; padding-left: 5.4pt; background: rgb(198,217,241); padding-bottom: 0pt; border-left: medium none; width: 48.25pt; padding-top: 0pt; border-bottom: rgb(0,0,0) 0.5pt solid; mso-border-left-alt: none; mso-border-right-alt: 0.5000pt solid rgb(0,0,0); mso-border-top-alt: 0.5000pt solid rgb(0,0,0); mso-border-bottom-alt: 0.5000pt solid rgb(0,0,0)"> 6<o:p></o:p> </td> <td valign="middle" width="64" style="border-right: rgb(0,0,0) 0.5pt solid; padding-right: 5.4pt; border-top: rgb(0,0,0) 0.5pt solid; padding-left: 5.4pt; background: rgb(198,217,241); padding-bottom: 0pt; border-left: medium none; width: 48.25pt; padding-top: 0pt; border-bottom: rgb(0,0,0) 0.5pt solid; mso-border-left-alt: none; mso-border-right-alt: 0.5000pt solid rgb(0,0,0); mso-border-top-alt: 0.5000pt solid rgb(0,0,0); mso-border-bottom-alt: 0.5000pt solid rgb(0,0,0)"> 7<o:p></o:p> </td> <td valign="middle" width="64" style="border-right: rgb(0,0,0) 0.5pt solid; padding-right: 5.4pt; border-top: rgb(0,0,0) 0.5pt solid; padding-left: 5.4pt; background: rgb(198,217,241); padding-bottom: 0pt; border-left: medium none; width: 48.25pt; padding-top: 0pt; border-bottom: rgb(0,0,0) 0.5pt solid; mso-border-left-alt: none; mso-border-right-alt: 0.5000pt solid rgb(0,0,0); mso-border-top-alt: 0.5000pt solid rgb(0,0,0); mso-border-bottom-alt: 0.5000pt solid rgb(0,0,0)"> 8<o:p></o:p> </td> </tr> <tr style="height: 15.6pt"> <td valign="middle" width="98" style="border-right: rgb(0,0,0) 0.5pt solid; padding-right: 5.4pt; border-top: medium none; padding-left: 5.4pt; background: rgb(198,217,241); padding-bottom: 0pt; border-left: rgb(0,0,0) 0.5pt solid; width: 73.75pt; padding-top: 0pt; border-bottom: rgb(0,0,0) 0.5pt solid; mso-border-left-alt: 0.5000pt solid rgb(0,0,0); mso-border-right-alt: 0.5000pt solid rgb(0,0,0); mso-border-top-alt: 0.5000pt solid rgb(0,0,0); mso-border-bottom-alt: 0.5000pt solid rgb(0,0,0)"> 485/422<o:p></o:p> </td> <td valign="middle" width="64" style="border-right: rgb(0,0,0) 0.5pt solid; padding-right: 5.4pt; border-top: medium none; padding-left: 5.4pt; padding-bottom: 0pt; border-left: medium none; width: 48.2pt; padding-top: 0pt; border-bottom: rgb(0,0,0) 0.5pt solid; mso-border-left-alt: none; mso-border-right-alt: 0.5000pt solid rgb(0,0,0); mso-border-top-alt: 0.5000pt solid rgb(0,0,0); mso-border-bottom-alt: 0.5000pt solid rgb(0,0,0)"> 未使用<o:p></o:p> </td> <td valign="middle" width="70" style="border-right: rgb(0,0,0) 0.5pt solid; padding-right: 5.4pt; border-top: medium none; padding-left: 5.4pt; padding-bottom: 0pt; border-left: medium none; width: 53pt; padding-top: 0pt; border-bottom: rgb(0,0,0) 0.5pt solid; mso-border-left-alt: none; mso-border-right-alt: 0.5000pt solid rgb(0,0,0); mso-border-top-alt: 0.5000pt solid rgb(0,0,0); mso-border-bottom-alt: 0.5000pt solid rgb(0,0,0)"> 485+/T+<o:p></o:p> </td> <td valign="middle" width="64" style="border-right: rgb(0,0,0) 0.5pt solid; padding-right: 5.4pt; border-top: medium none; padding-left: 5.4pt; padding-bottom: 0pt; border-left: medium none; width: 48.2pt; padding-top: 0pt; border-bottom: rgb(0,0,0) 0.5pt solid; mso-border-left-alt: none; mso-border-right-alt: 0.5000pt solid rgb(0,0,0); mso-border-top-alt: 0.5000pt solid rgb(0,0,0); mso-border-bottom-alt: 0.5000pt solid rgb(0,0,0)"> GND<o:p></o:p> </td> <td valign="middle" width="64" style="border-right: rgb(0,0,0) 0.5pt solid; padding-right: 5.4pt; border-top: medium none; padding-left: 5.4pt; padding-bottom: 0pt; border-left: medium none; width: 48.2pt; padding-top: 0pt; border-bottom: rgb(0,0,0) 0.5pt solid; mso-border-left-alt: none; mso-border-right-alt: 0.5000pt solid rgb(0,0,0); mso-border-top-alt: 0.5000pt solid rgb(0,0,0); mso-border-bottom-alt: 0.5000pt solid rgb(0,0,0)"> 485-/T-<o:p></o:p> </td> <td valign="middle" width="64" style="border-right: rgb(0,0,0) 0.5pt solid; padding-right: 5.4pt; border-top: medium none; padding-left: 5.4pt; padding-bottom: 0pt; border-left: medium none; width: 48.25pt; padding-top: 0pt; border-bottom: rgb(0,0,0) 0.5pt solid; mso-border-left-alt: none; mso-border-right-alt: 0.5000pt solid rgb(0,0,0); mso-border-top-alt: 0.5000pt solid rgb(0,0,0); mso-border-bottom-alt: 0.5000pt solid rgb(0,0,0)"> R+<o:p></o:p> </td> <td valign="middle" width="64" style="border-right: rgb(0,0,0) 0.5pt solid; padding-right: 5.4pt; border-top: medium none; padding-left: 5.4pt; padding-bottom: 0pt; border-left: medium none; width: 48.25pt; padding-top: 0pt; border-bottom: rgb(0,0,0) 0.5pt solid; mso-border-left-alt: none; mso-border-right-alt: 0.5000pt solid rgb(0,0,0); mso-border-top-alt: 0.5000pt solid rgb(0,0,0); mso-border-bottom-alt: 0.5000pt solid rgb(0,0,0)"> R-<o:p></o:p> </td> <td valign="middle" width="64" style="border-right: rgb(0,0,0) 0.5pt solid; padding-right: 5.4pt; border-top: medium none; padding-left: 5.4pt; padding-bottom: 0pt; border-left: medium none; width: 48.25pt; padding-top: 0pt; border-bottom: rgb(0,0,0) 0.5pt solid; mso-border-left-alt: none; mso-border-right-alt: 0.5000pt solid rgb(0,0,0); mso-border-top-alt: 0.5000pt solid rgb(0,0,0); mso-border-bottom-alt: 0.5000pt solid rgb(0,0,0)"> 未使用<o:p></o:p> </td> <td valign="middle" width="64" style="border-right: rgb(0,0,0) 0.5pt solid; padding-right: 5.4pt; border-top: medium none; padding-left: 5.4pt; padding-bottom: 0pt; border-left: medium none; width: 48.25pt; padding-top: 0pt; border-bottom: rgb(0,0,0) 0.5pt solid; mso-border-left-alt: none; mso-border-right-alt: 0.5000pt solid rgb(0,0,0); mso-border-top-alt: 0.5000pt solid rgb(0,0,0); mso-border-bottom-alt: 0.5000pt solid rgb(0,0,0)"> 未使用<o:p></o:p> </td> </tr> </tbody> </table>
