1进4出监控视分配器带增益放大功能
<br />
<span class="Apple-style-span" style="widows: 2; text-transform: none; text-indent: 0px; border-collapse: separate; font: medium Simsun; white-space: normal; orphans: 2; letter-spacing: normal; color: rgb(0,0,0); word-spacing: 0px; -webkit-border-horizontal-spacing: 0px; -webkit-border-vertical-spacing: 0px; -webkit-text-decorations-in-effect: none; -webkit-text-size-adjust: auto; -webkit-text-stroke-width: 0px"><span class="Apple-style-span" style="line-height: 21px; font-family: tahoma, arial, 宋体, sans-serif; color: rgb(64,64,64); font-size: 14px">
<p align="center" style="text-align: center; padding-bottom: 0px; text-indent: 0cm; margin: 0cm 0cm 0pt; padding-left: 0px; padding-right: 0px; padding-top: 0px"><u style="text-decoration: underline"><span style="font-family: 宋体; font-size: 26pt">视频分配器</span></u></p>
<p align="center" style="text-align: center; padding-bottom: 0px; margin: 0cm 0cm 0pt; padding-left: 0px; padding-right: 0px; padding-top: 0px"> </p>
<p align="center" style="text-align: center; padding-bottom: 0px; margin: 0cm 0cm 0pt; padding-left: 0px; padding-right: 0px; padding-top: 0px"><span style="font-size: 26pt"><font face="Times New Roman">1</font></span><span style="font-family: 宋体; font-size: 26pt">分</span><span style="font-size: 26pt"><font face="Times New Roman">4</font></span></p>
<p align="center" style="text-align: center; padding-bottom: 0px; margin: 0cm 0cm 0pt; padding-left: 0px; padding-right: 0px; padding-top: 0px"><span style="font-family: 宋体; font-size: 24pt">中文版说明书</span></p>
<p style="padding-bottom: 0px; margin: 0cm 0cm 0pt; padding-left: 0px; padding-right: 0px; padding-top: 0px"> </p>
<ul style="padding-bottom: 0px; list-style-type: none; margin: 1em 1em 1em 0px; padding-left: 40px; padding-right: 0px; padding-top: 0px">
<li style="list-style-position: outside; padding-bottom: 0px; list-style-type: disc; margin: 0px; padding-left: 0px; padding-right: 0px; padding-top: 0px"><span style="font-family: 宋体">特点：</span></li>
</ul>
<p style="padding-bottom: 0px; text-indent: 21.75pt; margin: 0cm 0cm 0pt; padding-left: 0px; padding-right: 0px; padding-top: 0px"><span style="font-family: 宋体">包括单路视频输入、四路视频输出的视频分配器。</span></p>
<p style="padding-bottom: 0px; text-indent: 21.75pt; margin: 0cm 0cm 0pt; padding-left: 0px; padding-right: 0px; padding-top: 0px"> </p>
<ul style="padding-bottom: 0px; list-style-type: none; margin: 1em 1em 1em 0px; padding-left: 40px; padding-right: 0px; padding-top: 0px">
<li style="list-style-position: outside; padding-bottom: 0px; list-style-type: disc; margin: 0px; padding-left: 0px; padding-right: 0px; padding-top: 0px"><span style="font-family: 宋体">技术指标：</span></li>
</ul>
<p style="padding-bottom: 0px; margin: 0cm 0cm 0pt; padding-left: 0px; padding-right: 0px; padding-top: 0px"><span><span><font face="Times New Roman"> </font></span></span><span style="font-family: 宋体">供电电源：</span><span><font face="Times New Roman">AV 220V<span> </span>50Hz<span> </span></font></span><span style="font-family: 宋体">±</span><span><font face="Times New Roman">10%</font></span></p>
<p style="padding-bottom: 0px; margin: 0cm 0cm 0pt; padding-left: 0px; padding-right: 0px; padding-top: 0px"><span><span><font face="Times New Roman"> </font></span></span><span style="font-family: 宋体">耗电功率：</span><span><font face="Times New Roman">5W</font></span></p>
<p style="padding-bottom: 0px; margin: 0cm 0cm 0pt; padding-left: 0px; padding-right: 0px; padding-top: 0px"><span><span><font face="Times New Roman"> </font></span></span><span style="font-family: 宋体">输入信号：</span><span><font face="Times New Roman">0.5Vp-p---2.0Vp-p<span> </span></font></span><span style="font-family: 宋体">复合影像信号：</span><span><font face="Times New Roman">1</font></span><span style="font-family: 宋体">个</span><span><font face="Times New Roman"><span> </span>75ohm<span> </span>BNC</font></span></p>
<p style="padding-bottom: 0px; margin: 0cm 0cm 0pt; padding-left: 0px; padding-right: 0px; padding-top: 0px"><span><span><font face="Times New Roman"> </font></span></span><span style="font-family: 宋体">输出信号：</span><span><font face="Times New Roman">0.5Vp-p---2.0Vp-p<span> </span></font></span><span style="font-family: 宋体">复合影像信号：</span><span><font face="Times New Roman">4</font></span><span style="font-family: 宋体">个</span><span><font face="Times New Roman"><span> </span>75ohm<span> </span>BNC</font></span></p>
<p style="padding-bottom: 0px; margin: 0cm 0cm 0pt; padding-left: 0px; padding-right: 0px; padding-top: 0px"><span><span><font face="Times New Roman"> </font></span></span><span style="font-family: 宋体">频宽：</span><span><font face="Times New Roman"><span> </span>20MHz<span> </span></font></span><span style="font-family: 宋体">（</span><span style="font-family: 宋体">±<span>3Db<span> </span><span> </span>10Hz---10MHz</span></span><span style="font-family: 宋体">）</span><span><span><font face="Times New Roman"> </font></span></span><span style="font-family: 宋体">彩色兼容</span></p>
<p style="padding-bottom: 0px; margin: 0cm 0cm 0pt; padding-left: 0px; padding-right: 0px; padding-top: 0px"><span><span><font face="Times New Roman"> </font></span></span><span style="font-family: 宋体">信噪比：</span><span><font face="Times New Roman"><span> </span>-65Db</font></span></p>
<p style="padding-bottom: 0px; margin: 0cm 0cm 0pt; padding-left: 0px; padding-right: 0px; padding-top: 0px"><span><span><font face="Times New Roman"> </font></span></span><span style="font-family: 宋体">表面颜色：</span><span style="font-family: 宋体">白、黑</span></p>
<p style="padding-bottom: 0px; margin: 0cm 0cm 0pt; padding-left: 0px; padding-right: 0px; padding-top: 0px"><span><span><font face="Times New Roman"> </font></span></span><span style="font-family: 宋体">尺寸：</span><span><span><font face="Times New Roman"> </font></span></span><span style="font-family: 宋体">台式</span><font face="Times New Roman"><span>201mmX183mmX</span><span>45mm</span></font></p>
<p style="padding-bottom: 0px; margin: 0cm 0cm 0pt; padding-left: 0px; padding-right: 0px; padding-top: 0px"><span><span><font face="Times New Roman"> </font></span></span><span style="font-family: 宋体">温度：</span><span><span><font face="Times New Roman"> </font></span></span><span><font face="Times New Roman">0</font></span><span style="font-family: 宋体">°</span><span><font face="Times New Roman">C</font></span><span><font face="Times New Roman">--</font></span><span><font face="Times New Roman">-49</font></span><span style="font-family: 宋体">°<span>C</span></span></p>
<p style="padding-bottom: 0px; margin: 0cm 0cm 0pt; padding-left: 0px; padding-right: 0px; padding-top: 0px"><span><span><font face="Times New Roman"> </font></span></span><span style="font-family: 宋体">湿度：</span><span><span><font face="Times New Roman"> </font></span></span><span style="font-family: 宋体">相对湿度</span><span><font face="Times New Roman">95%</font></span><span style="font-family: 宋体">（无冷凝）</span></p>
<p style="padding-bottom: 0px; margin: 0cm 0cm 0pt; padding-left: 0px; padding-right: 0px; padding-top: 0px"><span><span><font face="Times New Roman"> </font></span></span><span style="font-family: 宋体">重量：</span><font face="Times New Roman"><span><span> </span></span><span>2.6KG</span></font></p>
<p style="padding-bottom: 0px; margin: 0cm 0cm 0pt; padding-left: 0px; padding-right: 0px; padding-top: 0px"> </p>
<ul style="padding-bottom: 0px; list-style-type: none; margin: 1em 1em 1em 0px; padding-left: 40px; padding-right: 0px; padding-top: 0px">
<li style="list-style-position: outside; padding-bottom: 0px; list-style-type: disc; margin: 0px; padding-left: 0px; padding-right: 0px; padding-top: 0px"><span style="font-family: 宋体">操作使用：</span></li>
</ul>

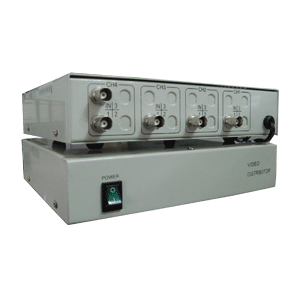

<p style="padding-bottom: 0px; margin: 0cm 0cm 0pt; padding-left: 0px; padding-right: 0px; padding-top: 0px"><span><span><font face="Times New Roman"> </font></span></span><span style="font-family: 宋体">将</span><span><font face="Times New Roman">CCD</font></span><span style="font-family: 宋体">摄像机送来的视频信号介入分配器的</span><span><font face="Times New Roman">VIDEO<span> </span>IN</font></span><span style="font-family: 宋体">，由对应的</span><span><font face="Times New Roman">VIDEO OUTPT</font></span><span style="font-family: 宋体">输出，分别接到</span><span><font face="Times New Roman">4</font></span><span style="font-family: 宋体">路视频信号通道。打开电源开关即可处于工作状态。后面版示意图：</span></p>
<p style="padding-bottom: 0px; margin: 0cm 0cm 0pt; padding-left: 0px; padding-right: 0px; padding-top: 0px"> </p>
<ul style="padding-bottom: 0px; list-style-type: none; margin: 1em 1em 1em 0px; padding-left: 40px; padding-right: 0px; padding-top: 0px">
<li style="list-style-position: outside; padding-bottom: 0px; list-style-type: disc; margin: 0px; padding-left: 0px; padding-right: 0px; padding-top: 0px"><span style="font-family: 宋体">前面版示意图：</span></li>
</ul>
<p style="padding-bottom: 0px; margin: 0cm 0cm 0pt; padding-left: 0px; padding-right: 0px; padding-top: 0px"> </p>
<p style="padding-bottom: 0px; margin: 0cm 0cm 0pt; padding-left: 0px; padding-right: 0px; padding-top: 0px"><span style="font-family: 宋体">注：本视频分配器有一定的视频放大功能。</span></p>
