凤凰光学8mm 2/3" 1000万像素FA机器视觉工业镜头
8mm 2/3” 10MP Machine Vision FA 1.1% Low Distortion Industrial Face Recognition 4K Camera Megapixel Lenses
High resolution : 10 megapixel cover all 4K & 1080P
Large format: 2/3" size covering 2/3", 1/1.8", 1/2" camera
Big aperture : F2.4 big aperture makes imaging far better
Low distortion : <1.1% low distortion use machine vision ITS
Compact size : Φ38mm diameter compact size
Illumination: 67%
Application : Automation, machine vision, medical, life science, ITS, SMT, AOI.
Model | SMV0824-10M | |
Resolution | 10 Megapixel | |
Format | 2/3" | |
Focal Length (mm) | 8mm | |
B.F.L (mm) | 9.3mm | |
Aperture (Close) | F2.4 Manual iris | |
Angle of View (°) | 2/3" | 69.5*58.2*45.2 |
1/2" | ||
1/3" | ||
M.O.D (m) | 0.1m | |

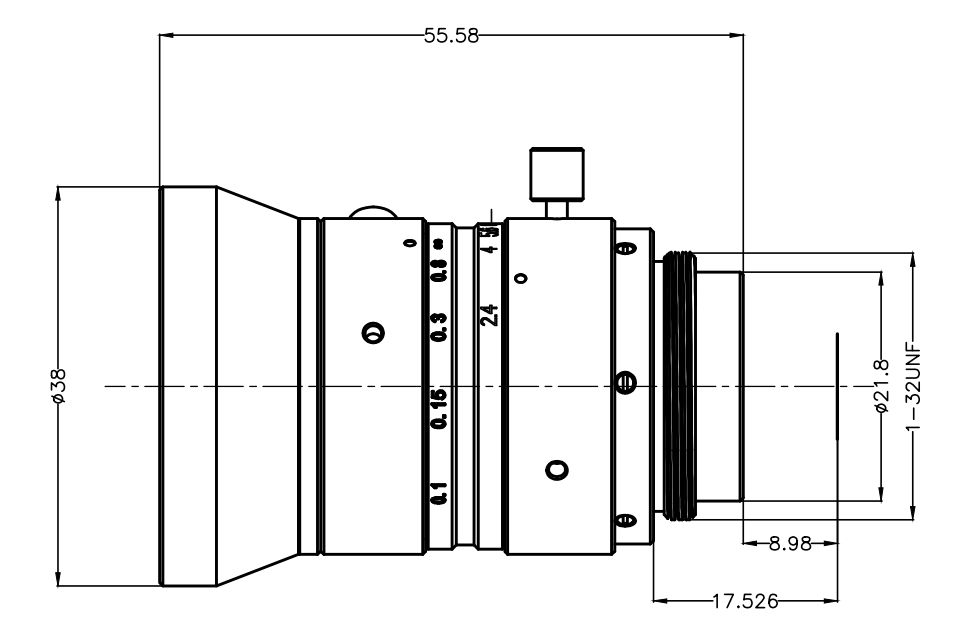

Size | Φ38*47 | |
Distortion | 1.1% | |
Filter Size (mm) | M37*0.5 | |
Mount | C | |
Weight (g) | 100 | |
