360度内壁瑕疵检测镜头
SRV3652 Innerwall 360° Degree Inner Side Barrel Surface Inspection 3.0Megapixel FA Lenses 2/3" Round View Imaging Camera Optics High Resolution Compact Object Lens For Pharmacy Cosmetic Alcohol ( 360度内壁检测镜头）
* 360°inner barrel inspection 360度内壁管检测
* High resolution & compact size 高像素紧凑尺寸
* Inspect small size object at wide sight 大视野范围内检测小尺寸物体
* Application for tube, auto, container, bottle cap inside inspection 管类,发动机,瓶罐内壁
Format 靶面 | SRV3652 ( 2/3" ) | ||
Resolution 像素 | 3.0 Megapixel | ||
Image circle 场高 | Φ6.6mm | ||
FOV Dia*Height | 2/3" | Standard 20*23mm ( Min.5*5 / Max.120*123 ) 景深 | |
Wavelength 波长 | 450~650nm | ||

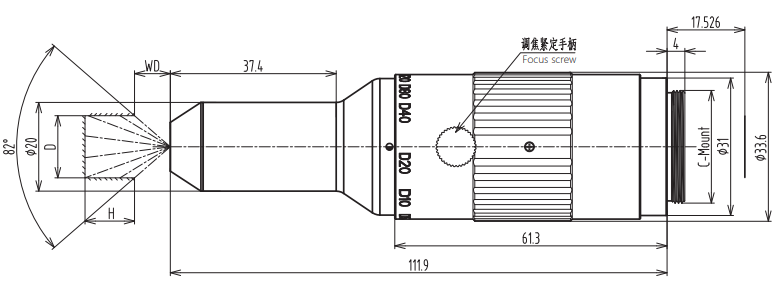

Diamension 尺寸 | Φ33.6*113.6mm | ||
Mount 接口 | C | ||
Diameter (mm) 直径 | Height (mm) 高度 | Working Distance (mm) 工作距 | |
5 | 5 | 2.7 | |
10 | 10 | 6 | |
20 | 21 | 11 | |
30 | 31 | 17.2 | |
40 | 41 | 23 | |
50 | 51.2 | 29 | |
60 | 61.4 | 35 | |
80 | 82 | 46.5 | |
100 | 102 | 58.3 | |
120 | 123 | 70 | |

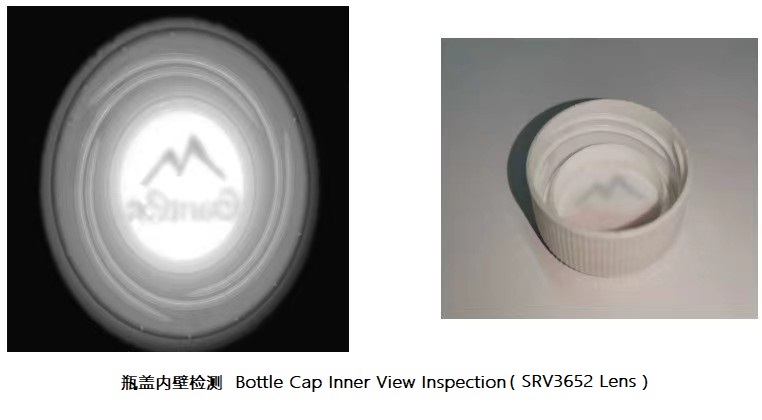

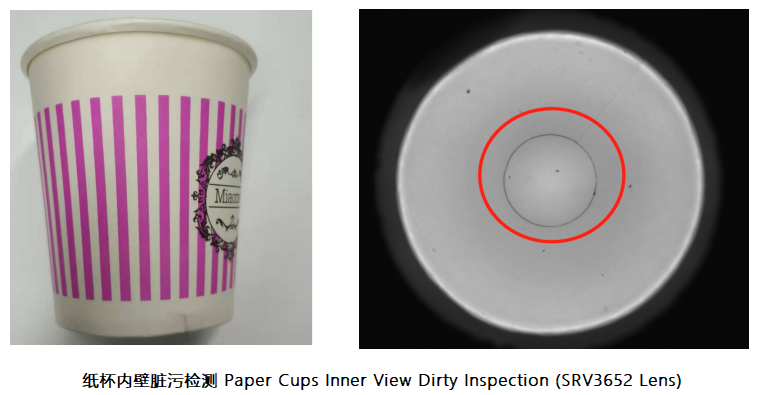

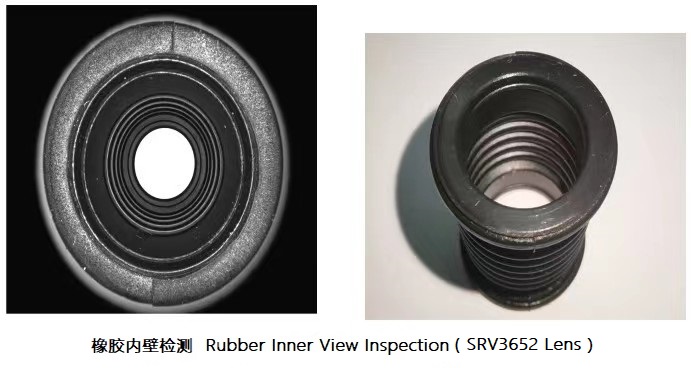

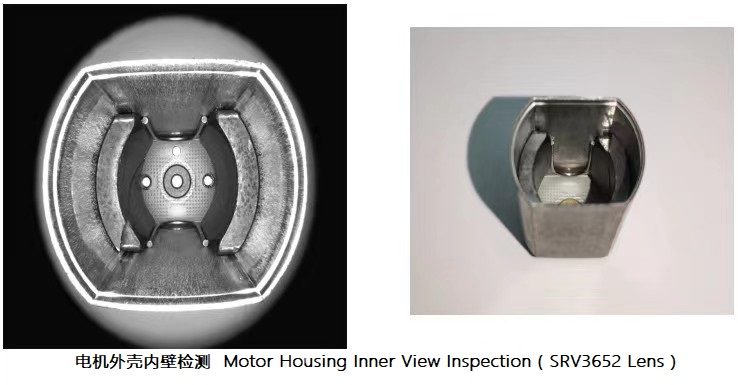

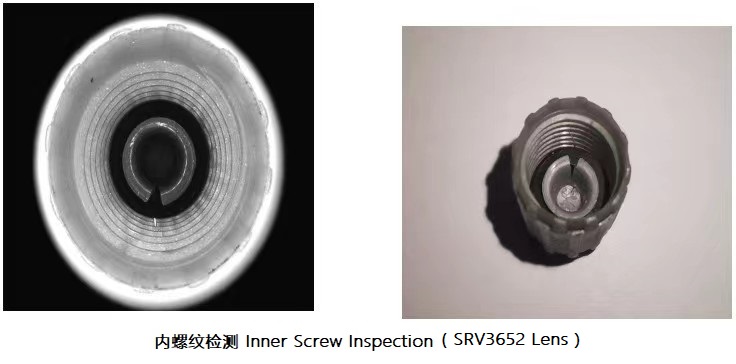

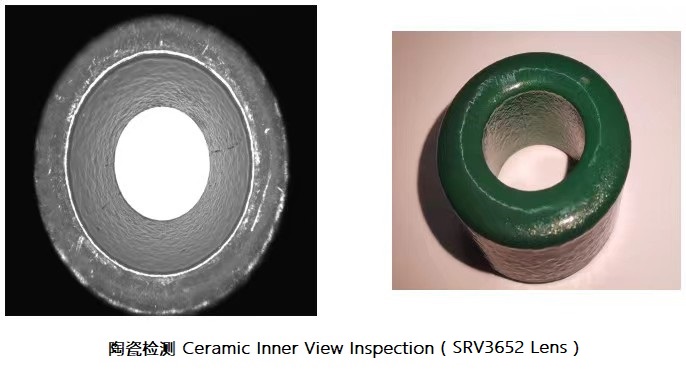

Project Cases Below :
